LED Film Transparent Display (Film Series)

LED Film Transparent Display (Film Series)

Film Series:

Transparent Film LED Screen is a perfect match for glass curtain walls due to its lightness, no need for steel frame structure, easy installation and maintenance, and good transparency. It can be applied to glass curtain walls without any sense of disobedience.

Product features:

High brightness up to 4000 nits/sqm for day time use.

Up to 90% transparency.

Weighs only 4KG/㎡, thickness only 4mm.

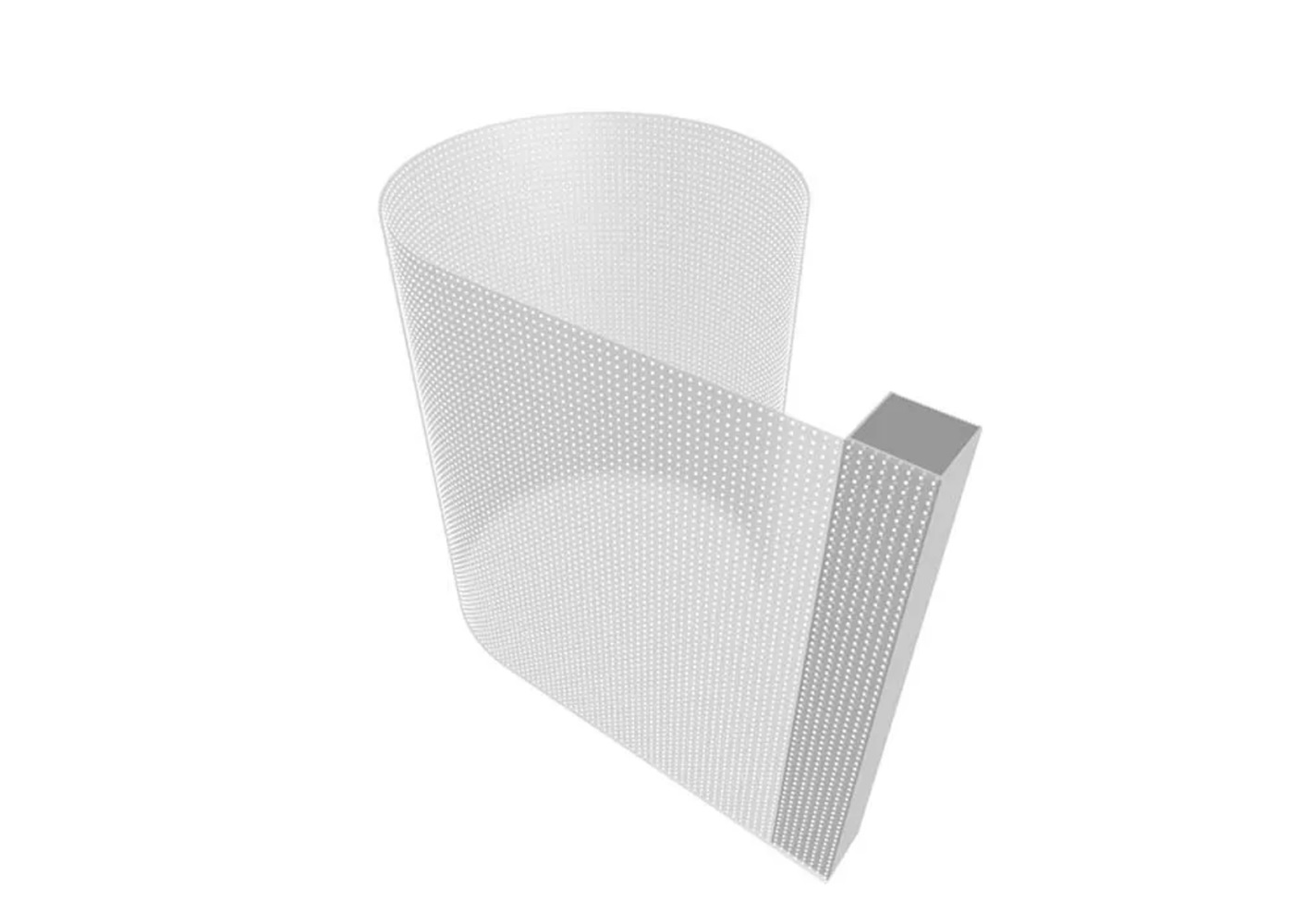

Ultra-flexible and can be used to create a variety of shapes such as round, curved and wavy.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

High Transparency

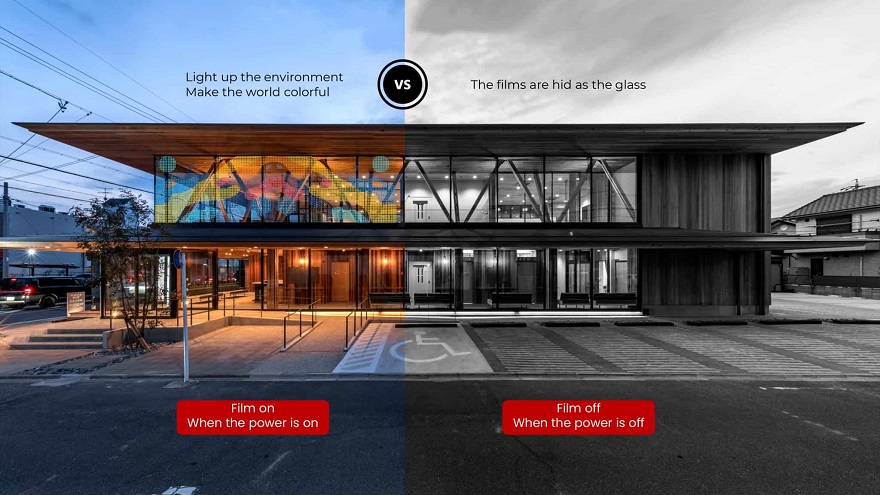

High transparency (90%) allows glass to remain visible, even after attaching the film, with no adverse effects on the original design. When the LED is ON, the film effectively displays content and information as digital signage, while also providing a see-through view with superb transparency. When the LED is OFF, the film is virtually unnoticeable, blending into the glass completely.

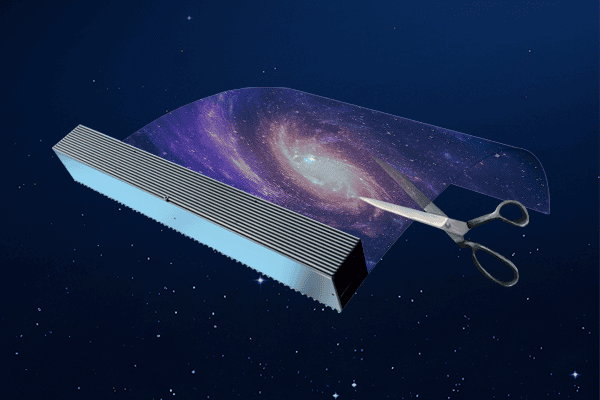

Flexible Design

Film series can be bent and cut, there is no power box in the middle, it is not limited by size, it can be flexibly designed according to customer needs, and it is highly flexible.

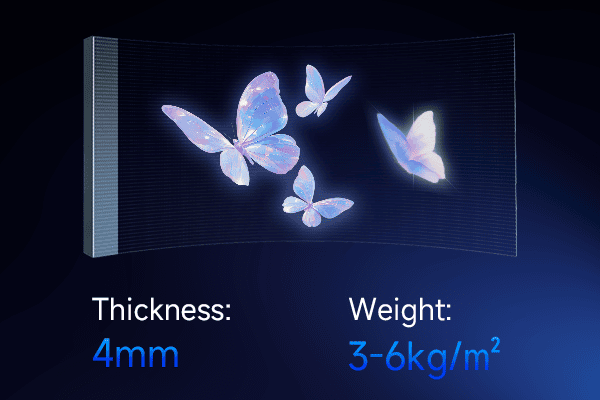

Ultra-thin & Light

The Transparent Film LED Screen is lightweight, with a thickness of about 4mm and a weight of 3-6kg/square meter.

Simple Structure

The structure is extremely simple, with high transparency, which does not affect the lighting of the glass curtain wall, and the transparency is as high as over 90%.

Adapt to Any Space

LED film transparent screens offer a range of installation options to suit any environment. Choose from stand-free installation for a sleek, unobtrusive setup, or hanging installation to maximize space and visibility. Whatever your display requirements, our versatile solutions ensure a perfect fit for any application.

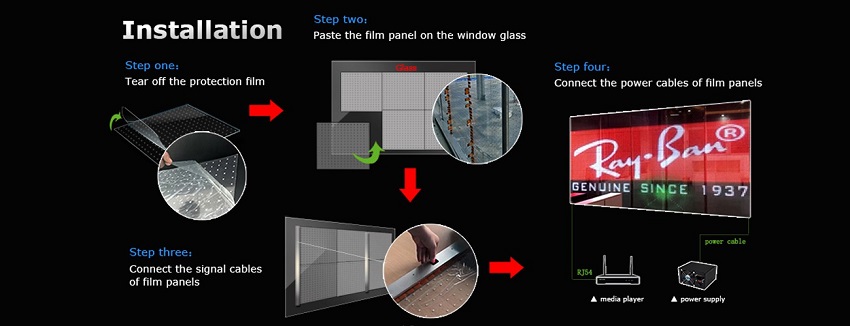

Easy Installation, Cost Saving

No need for additional steel structure or change in the appearance of auxiliary buildings, effectively reducing transportation and installation costs.

Application

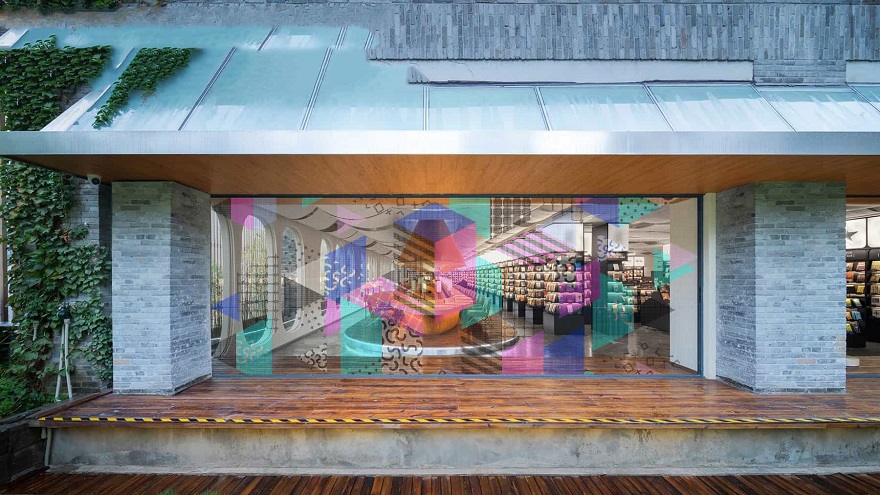

Whether in retail shop window, commercial wall, exhibition hall, creative display, automobile 4S shop etc, LED film transparent screens can bring people a shocking visual experience. Its emergence not only brings new possibilities to display technology, but also injects new vitality into the development of all walks of life.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

LED Film Transparent Display-Film Series

ITEM	P4	P5	P6	P8
Pixel Pitch	4mm	5mm	6mm	8mm
LED Lamp Model	Light Board & Driving Board Integrated
Brightness (nits)	1000-5000nits	1000-5000nits	1000-5000nits	1000-5000nits
Cabinet Size (W*H)	1000x240mm
Cabinet Weight (kg/m2)	4kg	4kg	4kg	4kg
Cabinet Resolution (W*H)	250x60	200x48	167x40	125x30
Density of Pixels (pixels/m2)	62,500 pixels	40,000 pixels	27,889 pixels	15,625 pixels
Cabinet Material	/
Protection Level	IP30/IP30
Viewing Angle (degree)	140/140
Operating Environment	-20~+50℃ 10%-90% RH
Refresh Rate	3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	800W/㎡	800W/㎡	800W/㎡	780W/㎡
Average Power (W/m2)	350W/㎡	220W/㎡	220W/㎡	220W/㎡
Maintenance Way	Front&Rear
