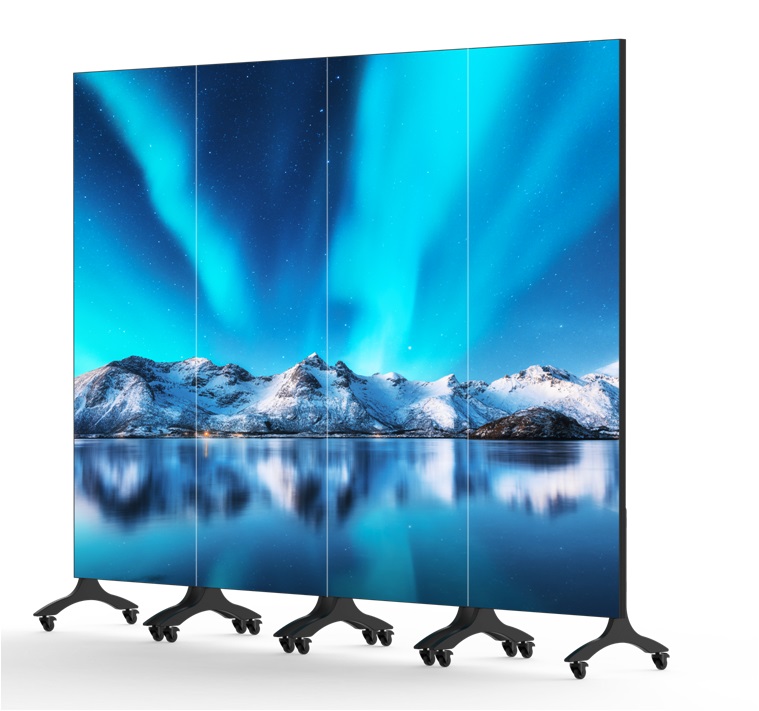

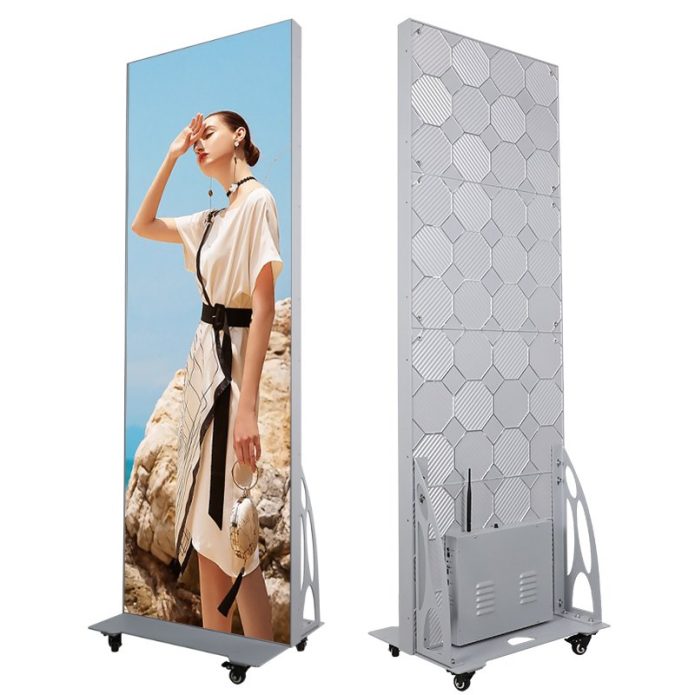

Aluminum frame, super lightweight and ultra slim.

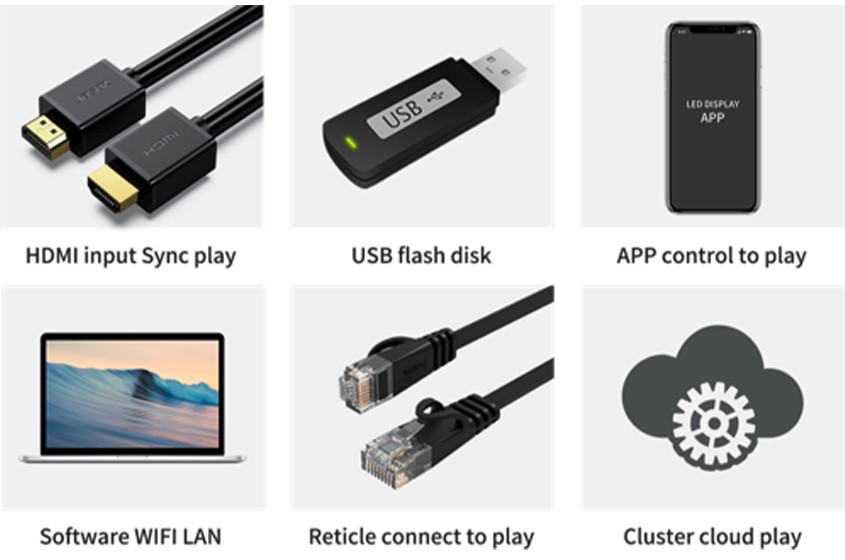

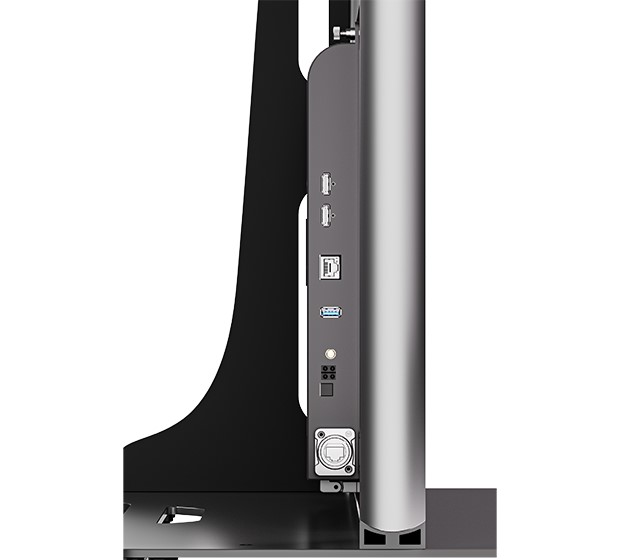

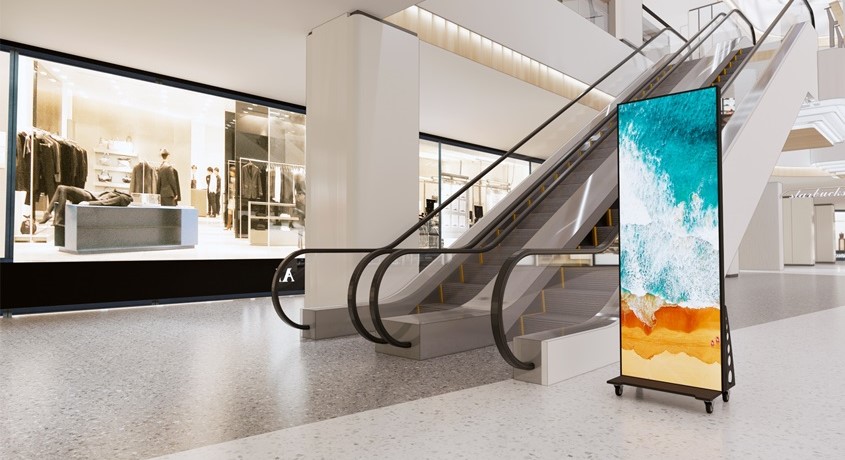

Easy to plug-in and play with USB, PC and WiFi.
Front/rear access.

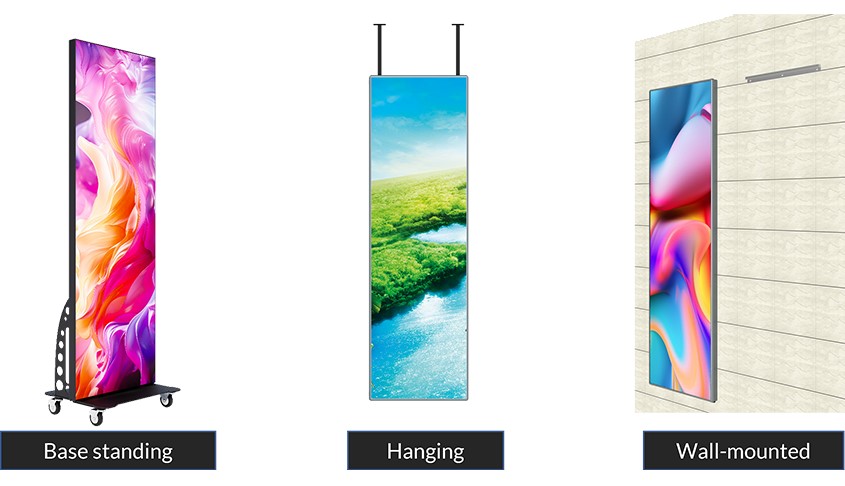

Convenient installation (standing, hanging, wall mounting).

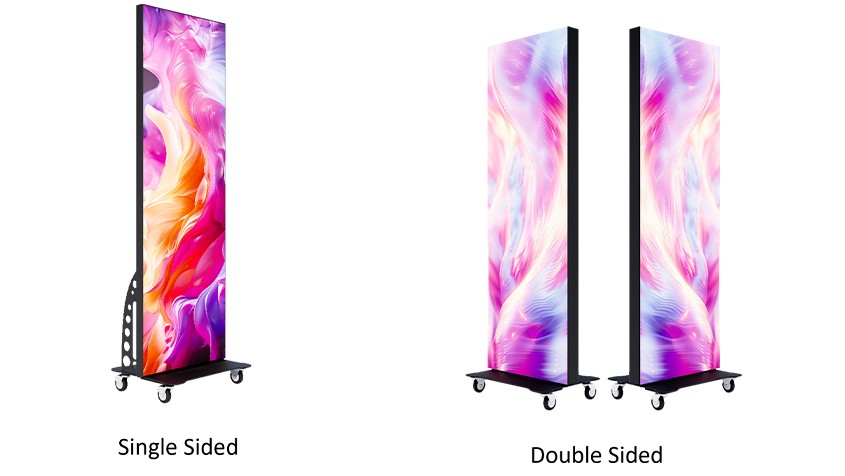

lP65, two-sided solution is available.
| ITEM | P1.2 | P1.5 | P1.8 | P2 | P2.5 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |

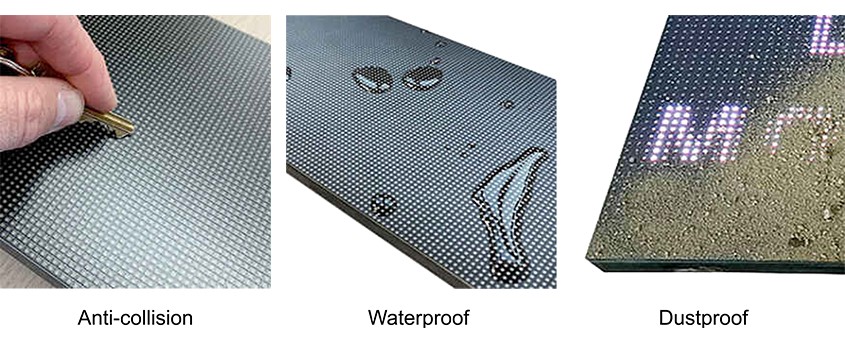

| LED Lamp Model | SMD/GOB | SMD/GOB | SMD/GOB | SMD/GOB | SMD/GOB |
| Brightness (nits) | 600 | 800 | 800 | 800-1000 | 800-1000 |
| Cabinet Size (W*H) | 640x1920 | 640x1920 | 640x1920 | 640x1920 | 640x1920 |
| Cabinet Weight (kg/cabinet) | 40kg | 40kg | 40kg | 40kg | 40kg |
| Cabinet Resolution (W*H) | 512x1536 | 416x1248 | 344x1032 | 320x960 | 256x768 |
| Density of Pixels (pixels/m2) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Cabinet Material | Die-casting Aluminum | ||||
| Protection Level | IP30 or IP65 (optional) | ||||
| Viewing Angle (degree) | 160/160 | ||||
| Operating Environment | -20~+50℃ 10%-90% RH | ||||
| Refresh Rate | 1920/3840Hz | ||||
| Gray Scale | 14 bit | ||||
| Signal Input | DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc | ||||
| Operating Voltage | 100-240V AC 50~60Hz | ||||
| Service Life | 100000Hours | ||||
| Maximum Power (W/m2) | 630W/㎡ | 660W/㎡ | 640W/㎡ | 680W/㎡ | 580W/㎡ |
| Average Power (W/m2) | 210W/㎡ | 231W/㎡ | 224W/㎡ | 238W/㎡ | 203W/㎡ |
| Maintenance Way | Front or Rear | ||||
