Outdoor Slim and Lightweight LED Display (OF Series)

Outdoor Slim and Lightweight LED Display (OF Series)

OF Series:

The OF series is not restricted by the installation environment, it can meet most outdoor fixed installation scenarios in the market due to the simple cabinet splicing. For instance, covering but not limited to conventional stacking projects, base installation projects, single/double column type for broadcast projects, and outdoor wall-mounted large billboard projects etc.

Product features:

Front & Rear dual service option for outdoor fix installation.

90 degree angle&flat led screen with the same module.

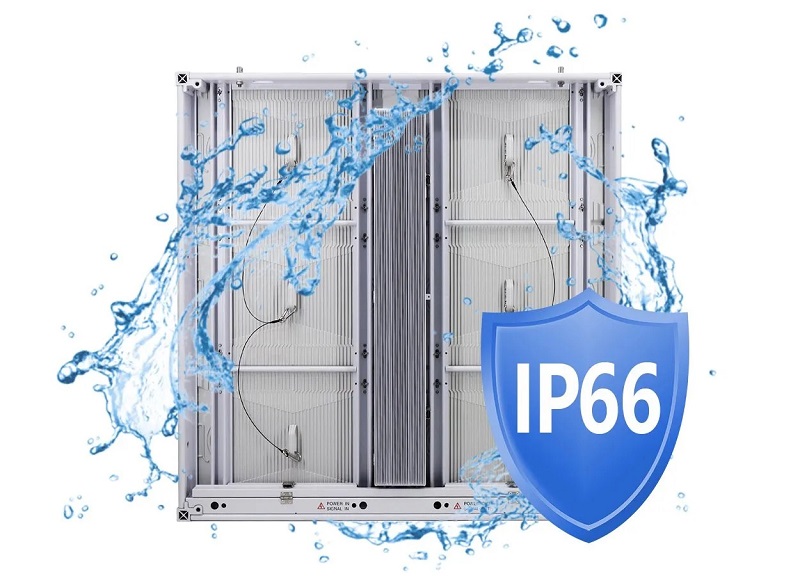

IP66 module with lightweight only 29KG/panel.

Noise-free, elegant housing design.

High reliability, wide application and brightness up to 10,000 nits.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

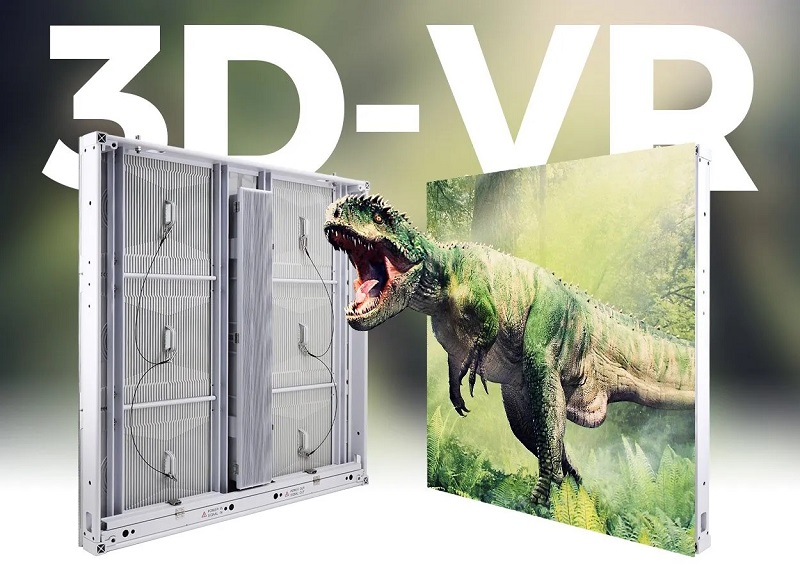

Energy-saving, Naked Eye 3D Video Outdoor LED Screen

OF series is aluminum profile cabinet, size of 96096077mm, equipped with high protection panel design, protection level up to IP65. Support front and back applications, easy maintenance. Ultra-low heat and power consumption, providing excellent visual experience.

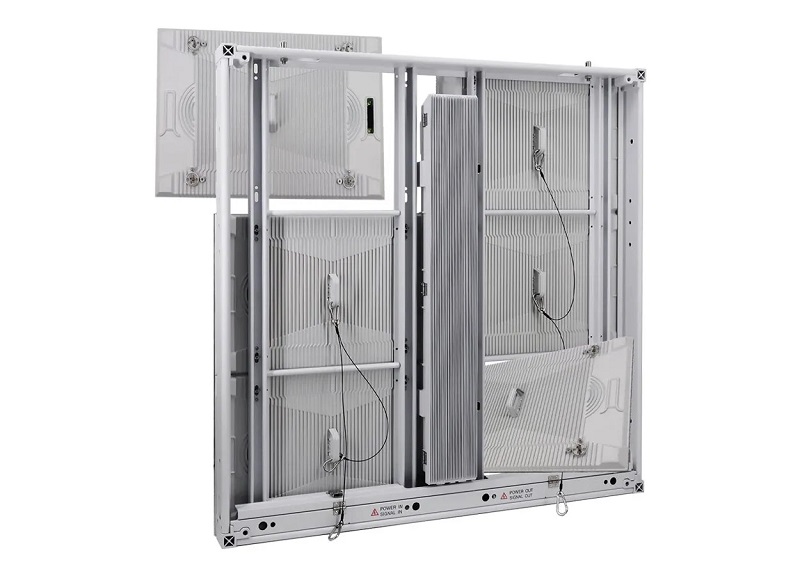

Fast Front and Rear Service Design

Designed with front and rear access, the LED panel can be assembled and disassembled easily and quickly, saving you maintenance costs.

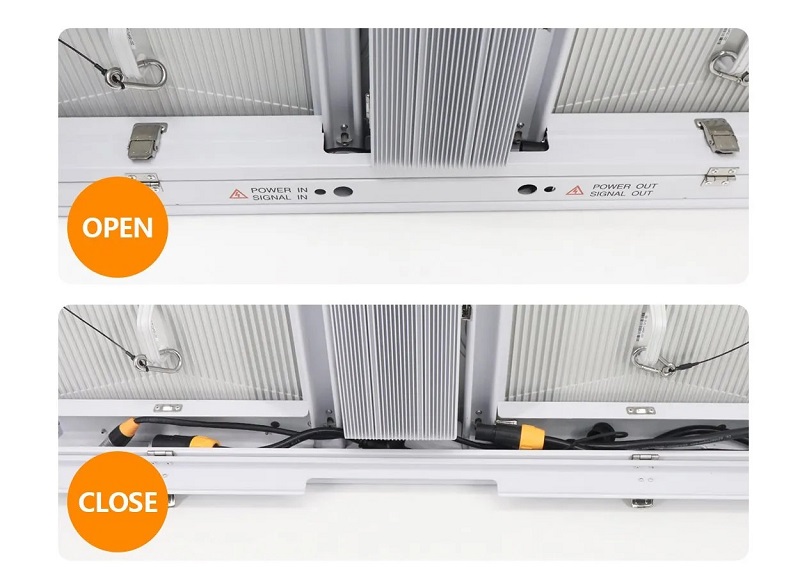

Invisible Cable Design

The power and data cables of the LED display are hidden at the bottom of the panel.

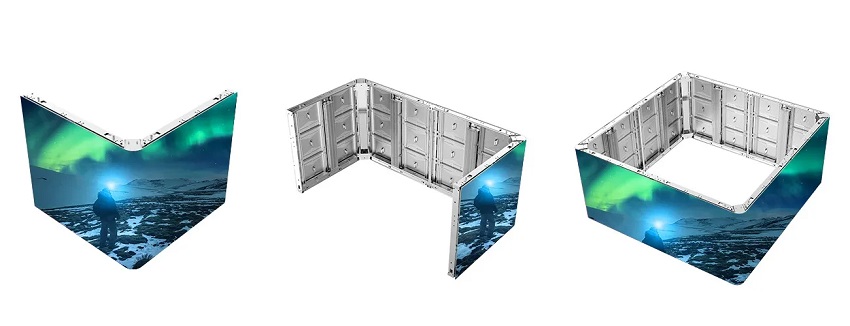

90° Curved Display

OF series LED display can be customized with 90°curved cabinet to achieve naked eye 3D display effect.

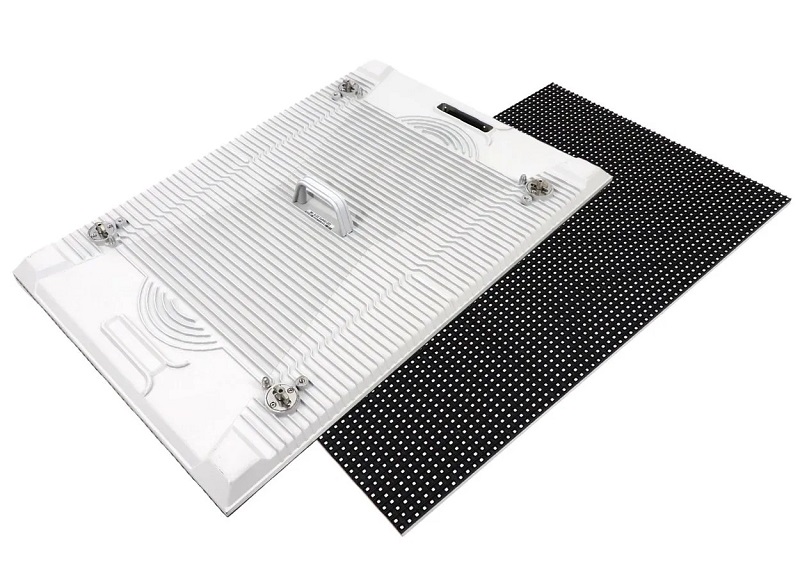

Die casting Aluminum LED Module for Strong Heat Dissipation

Aluminum material is more durable and stable than traditional steel one,the module uses aluminum alloy back shell and the power supply uses aluminum power box to quicken the heat disipation, and to make the electronic components can be cooled down fast, which give the screen a longer life span.

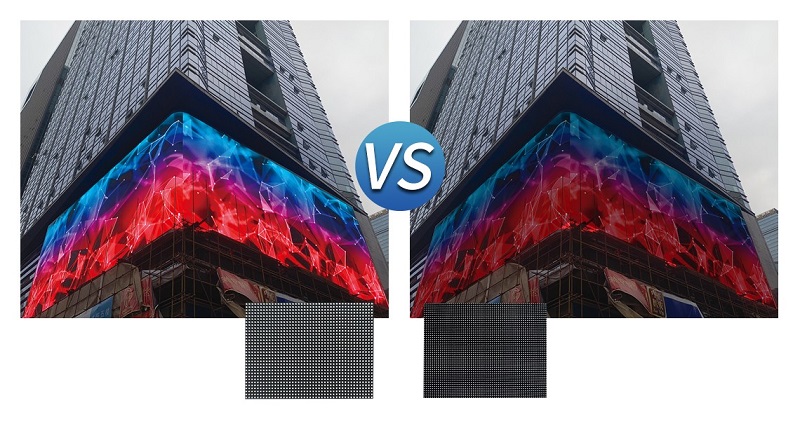

High Contrast Natural Colors

High-quality black lamp, contrast ratio 3000:1 Wide color gamut,make the colors are more real and natural

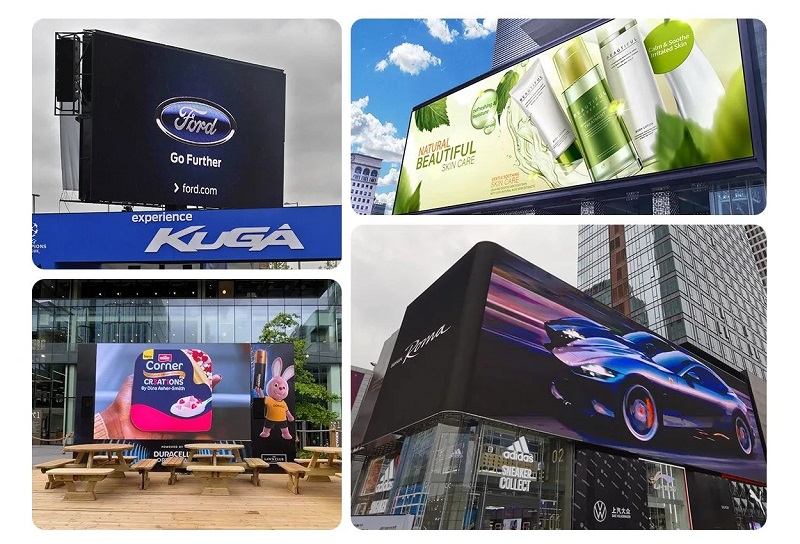

Application

OF series is suitable for a variety of application scenarios, such as commercial plazas, event venues, stage performances and commercial street advertisements, and can meet various commercial display needs.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Outdoor Fixed LED Display-OF Series

ITEM	P2.9	P4.4	P5.7	P6.6	P8	P10
Pixel Pitch	2.976mm	4.44mm	5.71mm	6.67mm	8mm	10mm
LED Lamp Model	SMD1415	SMD1921	SMD2727	SMD2727	SMD2727	SMD3535
Brightness (nits)	4500	6500	6500	6500/9500	6500/9500	6500/10000
Cabinet Size (W*H) mm	1000x1000	960x960	960x960	960x960	960x960	960x960
Cabinet Weight (kg/cabinet)	28kg	25kg	25kg	25kg	25kg	25kg
Cabinet Resolution (W*H)	336x336	216x216	168x168	144x144	120x120	96x96
Density of Pixels (pixels/m2)	112,896	50,635	30,625	22,500	15,625	10,000
Cabinet Material	Aluminum
Protection Level	IP65/IP54
Viewing Angle (degree)	140/140
Operating Environment	-20~+65℃ 10%-90% RH
Refresh Rate	3840Hz
Gray Scale	14-22 bits
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	700W/㎡	650W/㎡	650W/㎡	680W/㎡	620W/㎡	650W/㎡
Average Power (W/m2)	210W/㎡	220W/㎡	220W/㎡	260W/㎡	217W/㎡	230W/㎡
Maintenance Way	Front&Rear
