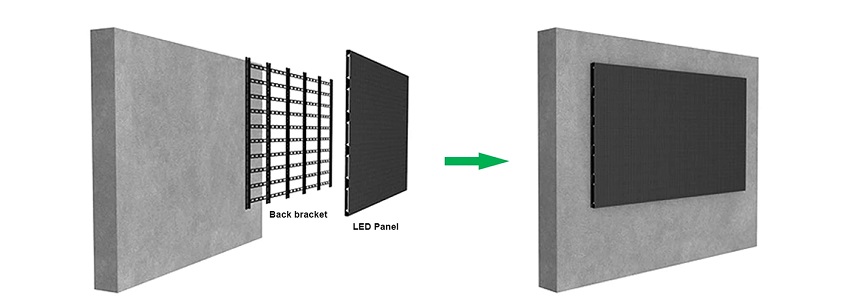

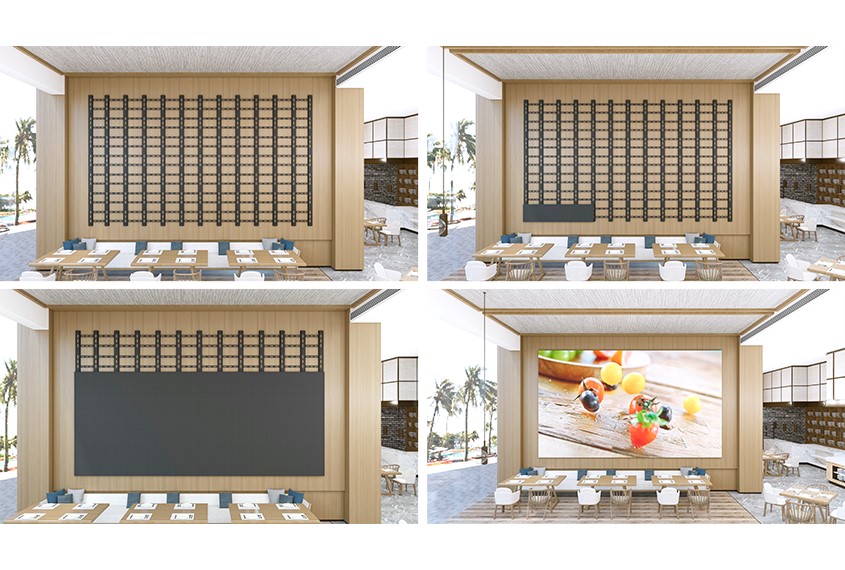

Front service for wall mount hoisting, double-sided lifting, shelf screen installation.

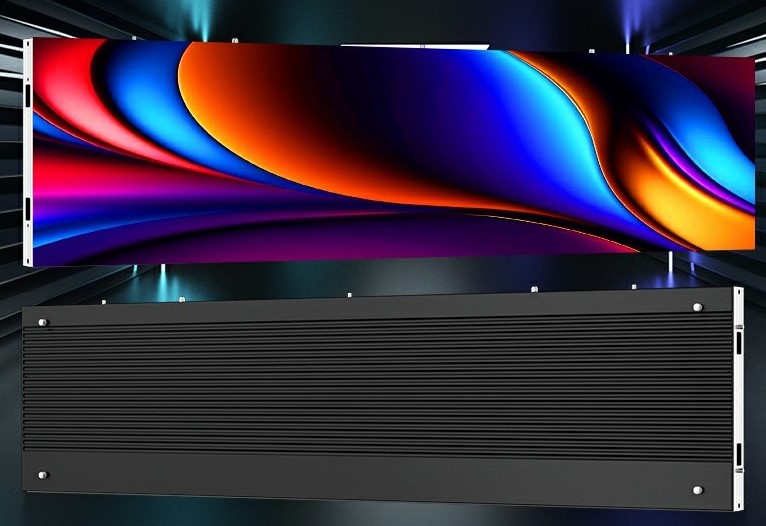

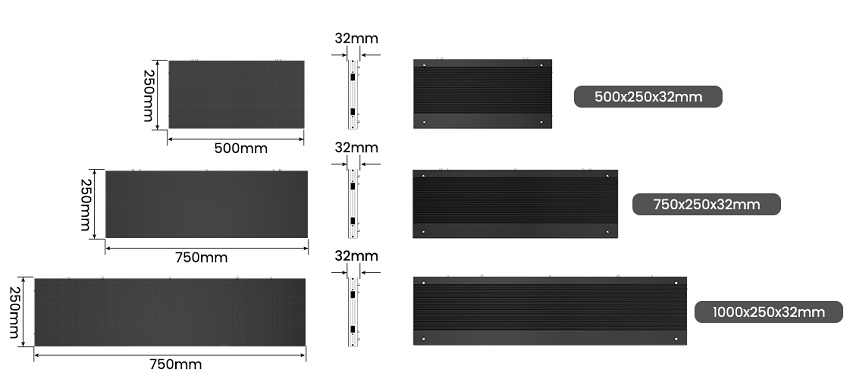

250x250mm, 500x250mm, 750x250mm, 1000x250mm and 1250x250mm cabinet size can be customized to build different size screen projects.

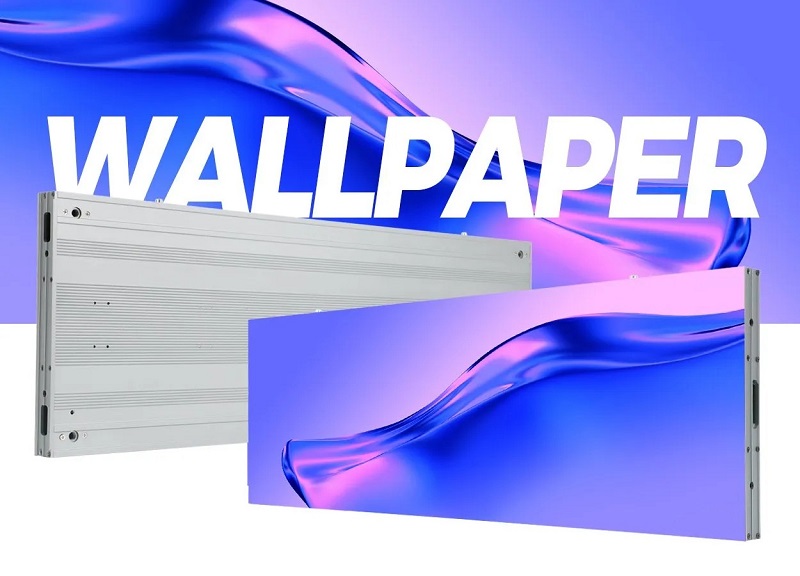

Only 5.6/6.8kg per cabinet, fast and easy installation, thickness 31mm only, smart and neat.

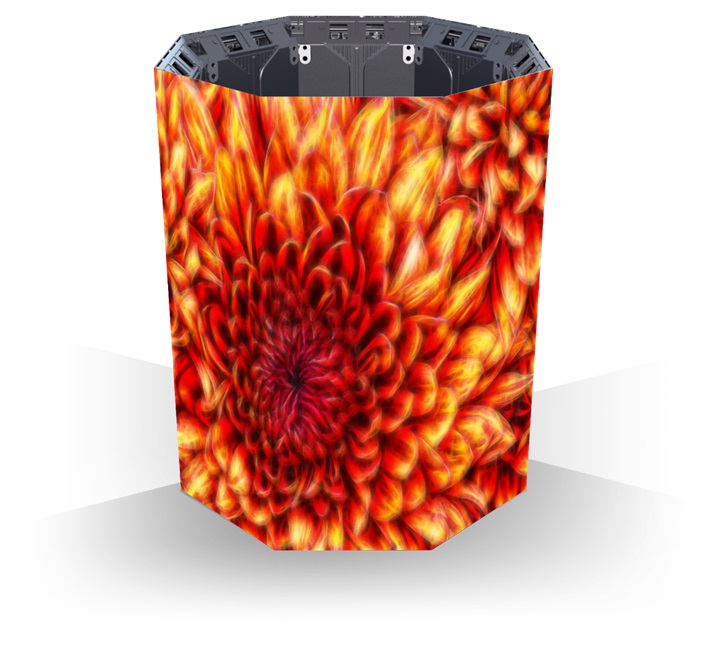

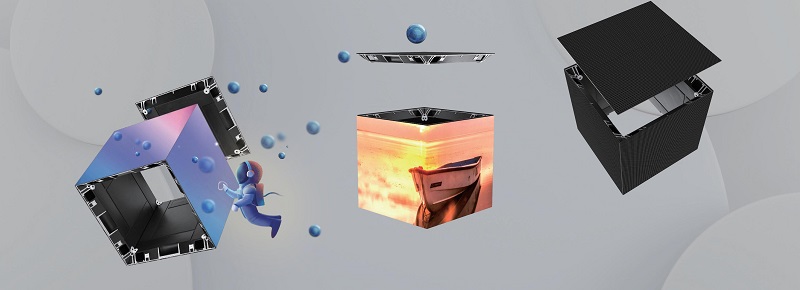

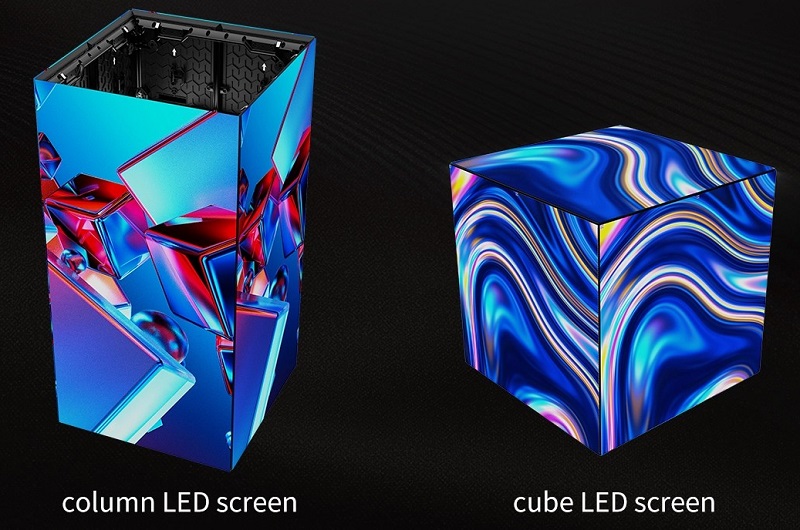

Flexible splicing and 90 degree angle is available.
| ITEM | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.8mm |
| LED Lamp Model | SMD1010 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness(nits) | 800-1200nits | 800-1200nits | 800-1200nits | 800-1200nits | 800-1200nits |
| Cabinet Size (W*H) | 1000x250mm | 1000x250mm | 1000x250mm | 1000x250mm | 1000x250mm |
| Cabinet Weight (kg/cabinet) | 6.8kg | 6.8kg | 6.8kg | 6.8kg | 6.8kg |
| Cabinet Resolution (W*H) | 512x128 | 384x96 | 336x84 | 256x64 | 208x52 |
| Density of Pixels (pixels/m2) | 262,144 pixels | 147,456 pixels | 112,986 pixels | 65,536 pixels | 43,264 pixels |
| Cabinet Material | Aluminum | ||||
| Protection Level | IP30/IP30 | ||||
| Viewing Angle (degree) | 160/160 | ||||
| Operating Environment | -20~+50℃ 10%-90% RH | ||||
| Refresh Rate | 3840Hz | ||||
| Gray Scale | 14 bit | ||||
| Signal Input | DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc | ||||
| Operating Voltage | 100-240V AC 50~60Hz | ||||
| Service Life | 100000Hours | ||||
| Maximum Power (W/m2) | 690W/㎡ | 420W/㎡ | 580W/㎡ | 550W/㎡ | 400W/㎡ |
| Average Power (W/m2) | 234W/㎡ | 147W/㎡ | 200W/㎡ | 193W/㎡ | 140W/㎡ |
| Maintenance Way | Front&Rear | ||||
