Outdoor Stadium LED Perimeter Banner (PC Series)

PC Series:

PC series is used in stadium fencing advertising, and an information display can display any length of strip advertising, it is used for a lot of sports games, indoor: basketball, volleyball, indoor football, ice hockey games, skating games, badminton, gymnastics.Outdoors include football, triathlon etc.

Product features:

Soft mask and top cover to protect the players.

Back support to make it could stand alone.

High refresh rate to record clear in the professional camera.

Waterproof with lP65, wide view angle.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

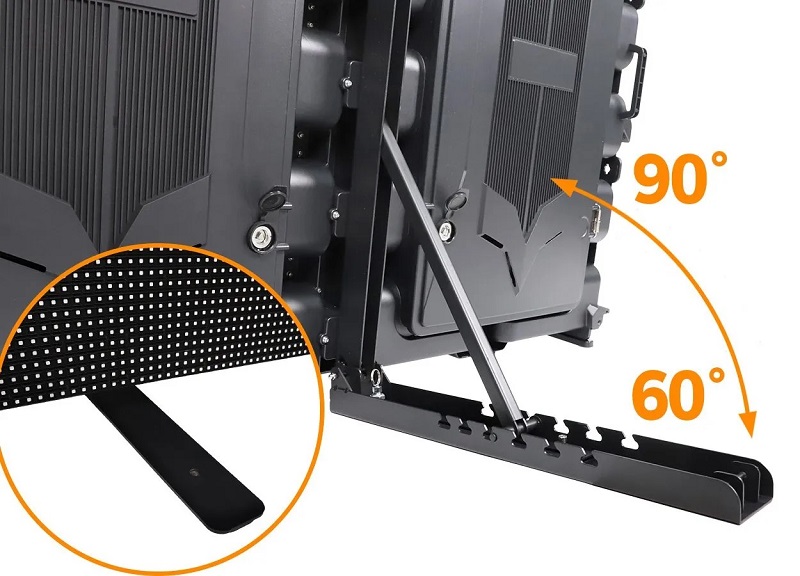

Adjustable Back Brackets

This structure makes it possible to adjust screens lean angel to realize wider viewing angle and reach more audience that brings more sports enjoyment and advertising revenue.

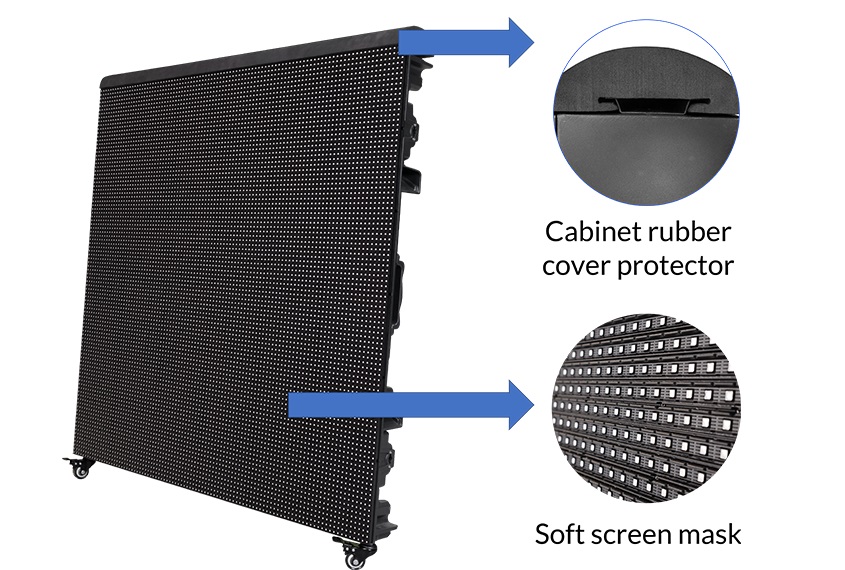

Impact-resistant Design

3-layer slope design soft screen mask, efficient impact buffering and rain draining; cabinet rubber cover protector, it can protect the players from being hurt during the match.

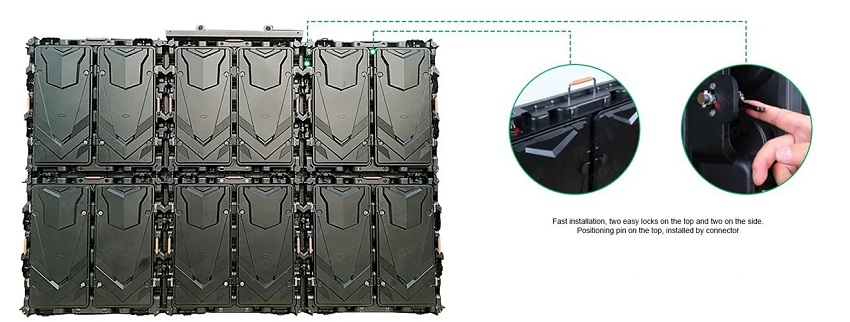

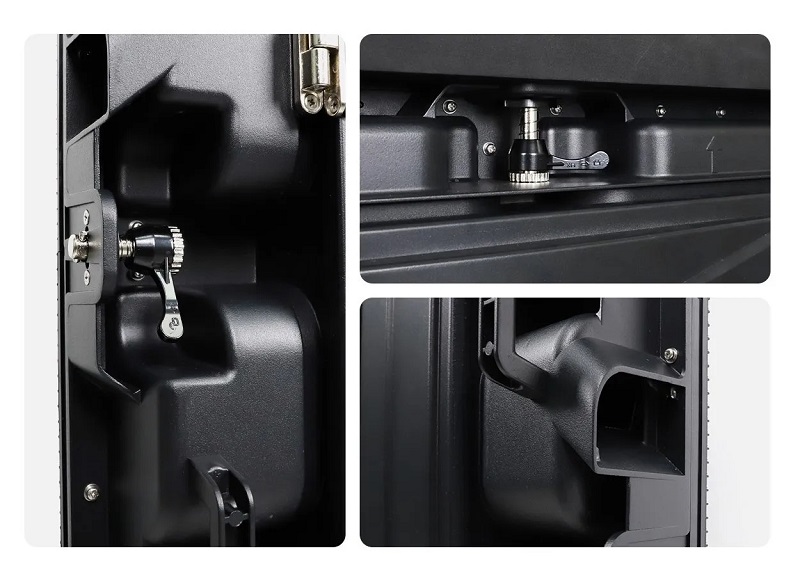

Easy to Install

Quick installation with high standard aviation connectors, saving installation time and aviation connector will ensure the stability and reliability of the screen especially in some important occasions.

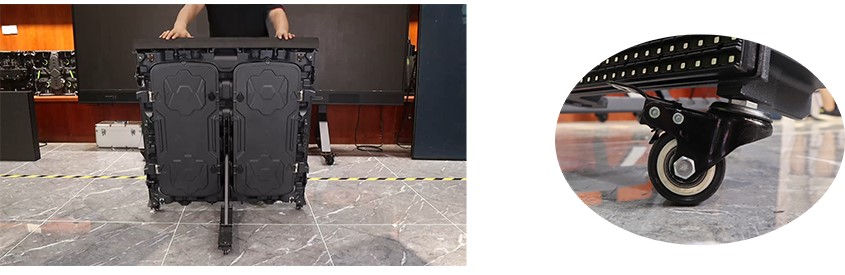

Rotating Design with Wheels For Emergency Exit

Perimeter series is equipped with rotating base and wheels for emergency exit for perimeter led display installation in the stadium, this is necessary for quick and easy escape required by most football associations.

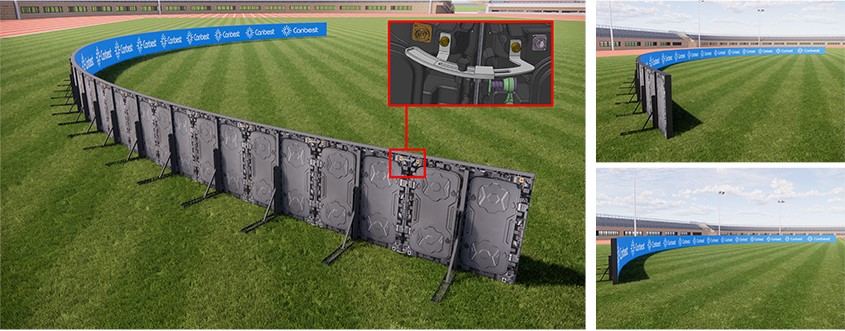

Curved Splicing Optional

The LED screen can present 0 °~20 ° arc splicing effects, providing more possibilities for stadium design.

Customized for the Stadium

It is specially designed for use around the stadium. High brightness and high refresh rate provide users with more realistic and vivid visual effects.

Multiple Purpose Usage

The cabinet is designed for multiple purposes. Stand on the stadium ground for sport LED advertising or stacked up as a big LED panel.

Application

it is used for a lot of sports games, indoor: basketball, volleyball, indoor football, ice hockey games, skating games, badminton, gymnastics. Outdoors include football, triathlon etc.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Stadium LED Perimeter screen (PC Series)

ITEM	P4	P6.67	P8	P10
Pixel Pitch	4mm	6.67mm	8mm	10mm
LED Lamp Model	SMD1921	SMD2727	SMD3535	SMD3535
Brightness(nits)	5500-6500nits	5500-6500nits	5500-6500nits	5500-6500nits
Cabinet Size (W*H)	960x960mm	960x960mm	960x960mm	960x960mm
Cabinet Weight (kg/cabinet)	28kg	28kg	28kg	28kg
Cabinet Resolution (W*H)	240x240	144x144	120x120	96x96
Density of Pixels (pixels/m2)	62,500 pixels	22,500 pixels	15,625 pixels	10,000 pixels
Cabinet Material	Die-casting Aluminum
Protection Level	IP65
Viewing Angle (degree)	140/140
Operating Environment	-20~+65℃ 10%-90% RH
Refresh Rate	3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	800W/㎡	800W/㎡	800W/㎡	800W/㎡
Average Power (W/m2)	280W/㎡	280W/㎡	280W/㎡	280W/㎡
Maintenance Way	Front & Rear
