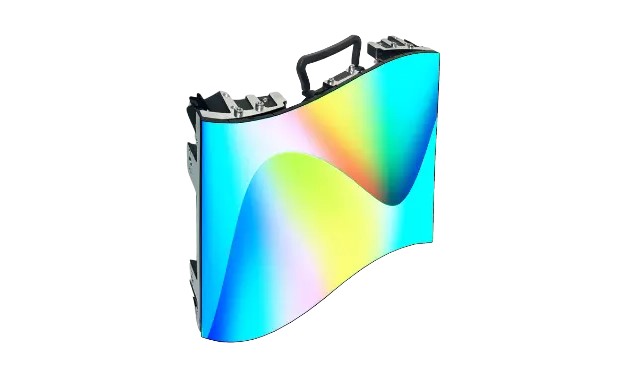

Maximum angle of 45 degrees for single cabinet.

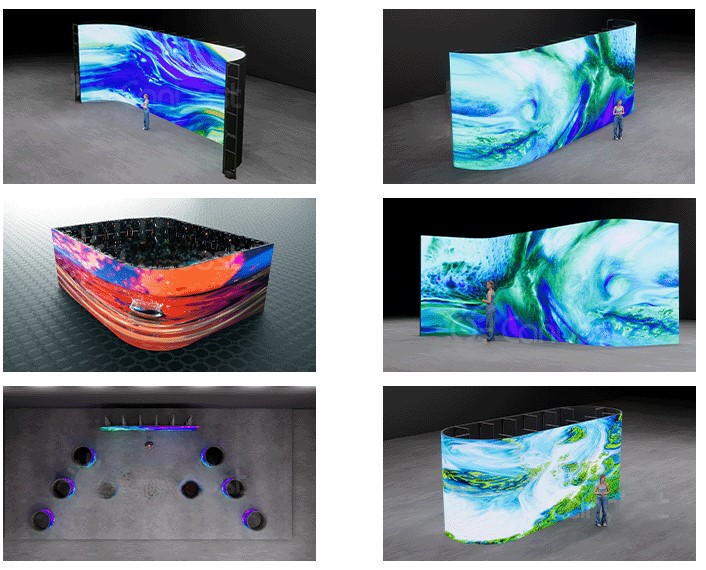

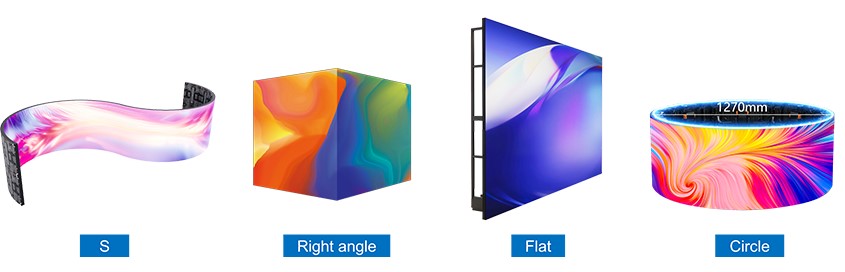

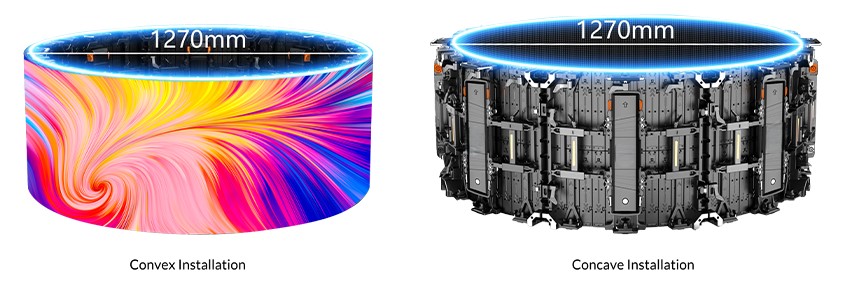

Just 8 cabinets can be combined to form a perfect circle.
Versatile pixel pitch indoor P1.9, P2.6 and P3.9, outdoor P2.9, 3.9 and 4.8.
High-precision scale lock that allows for fine-scale adjustment at every 2.5-degree increment.

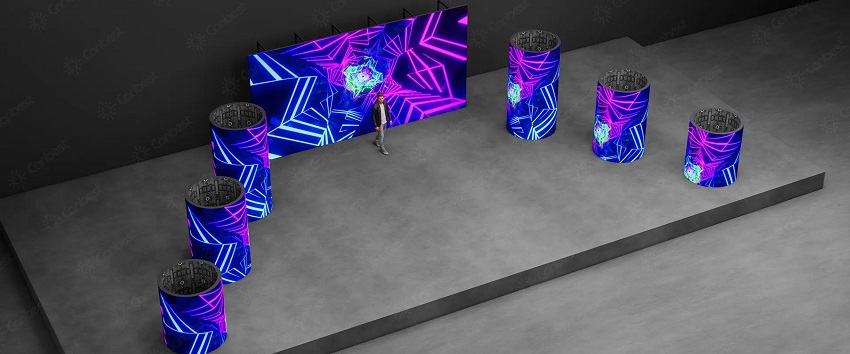

Suitable for concerts, meetings, events, exhibitions etc.
ITEM | P2.6i | P2.9i | P3.9i | P2.9 | P3.9 | P4.8 |
Pixel Pitch | 2.604mm | 2.976mm | 3.906mm | 2.976mm | 3.906mm | 4.807mm |
LED Lamp Model | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1921 | SMD1921 |
Brightness (nits) | 800-1200nits | 800-1200nits | 800-1200nits | 4500-5500nits | 4500-5500nits | 4500-5500nits |
Cabinet Size (W*H) | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
Cabinet Weight (kg/cabinet) | 7.1 | 7.1 | 7.1 | 8.8 | 8.8 | 8.8 |
Cabinet Resolution (W*H) | 192x192 | 168x168 | 128x128 | 168x168 | 128x128 | 104x104 |
Density of Pixels (pixels/m2) | 147,456 pixels | 112,896 pixels | 65,536 pixels | 112,896 pixels | 65,536 pixels | 43,264 pixels |

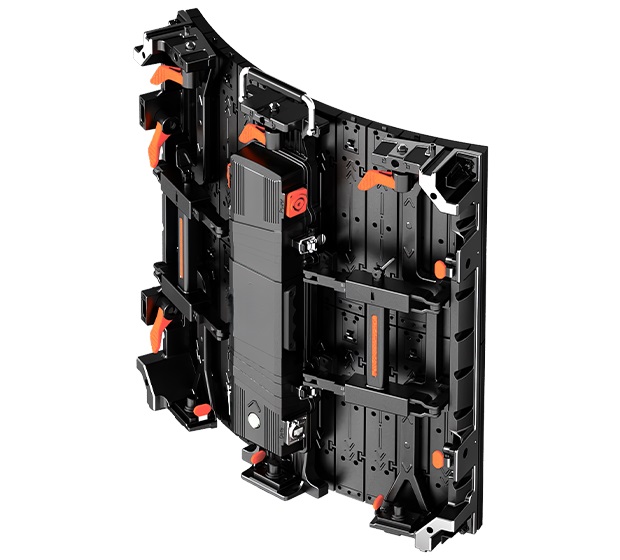

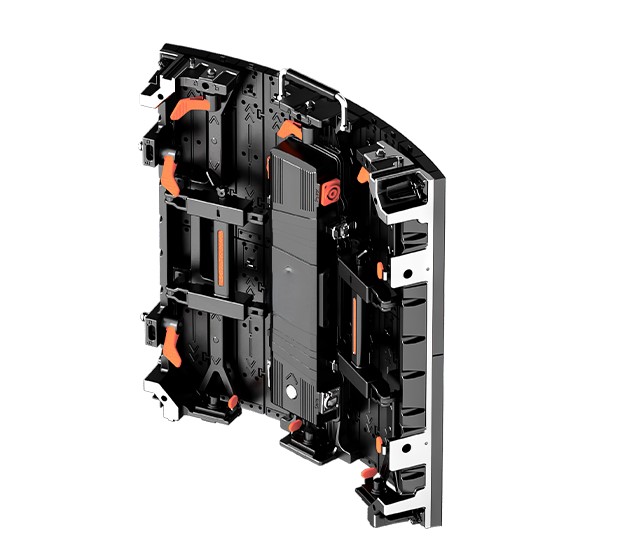

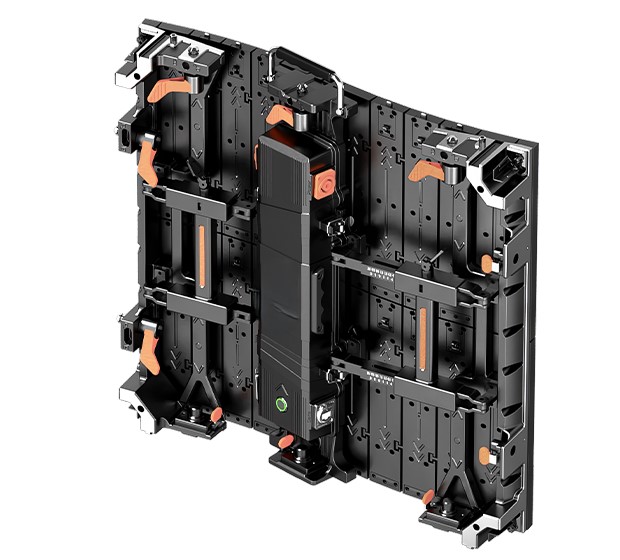

Cabinet Material | Die-Casting Aluminum | |||||
Protection Level | IP40/IP40 | IP65/IP54 | ||||

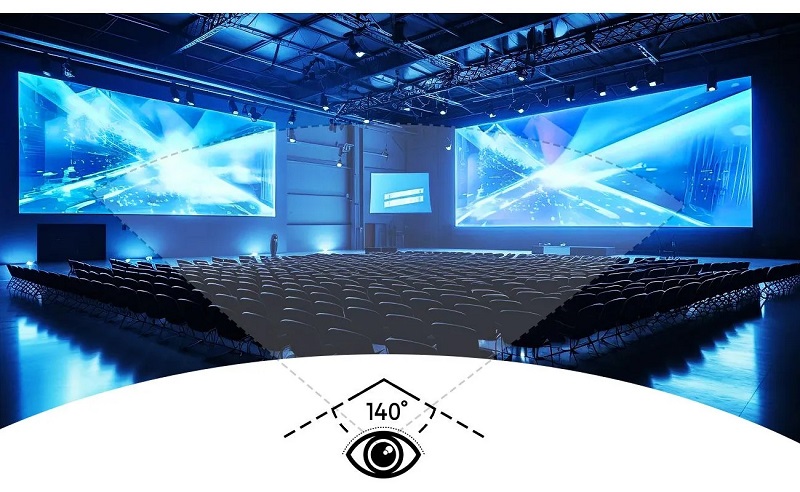

Viewing Angle (degree) | 140/140 | |||||
Operating Environment | -20~+50℃ 10%-90% RH | |||||
Refresh Rate | 1920/3840Hz | |||||
Gray Scale | 14 bit | |||||
Signal Input | DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc | |||||
Operating Voltage | 100-240V AC 50~60Hz | |||||
Service Life | 100000Hours | |||||
Maximum Power (W/m2) | 550W/㎡ | 520W/㎡ | 580W/㎡ | 650W/㎡ | 620W/㎡ | 650W/㎡ |
Average Power (W/m2) | 192W/㎡ | 182W/㎡ | 203W/㎡ | 227W/㎡ | 217W/㎡ | 230W/㎡ |
Maintenance Way | Rear |
