ED Series:

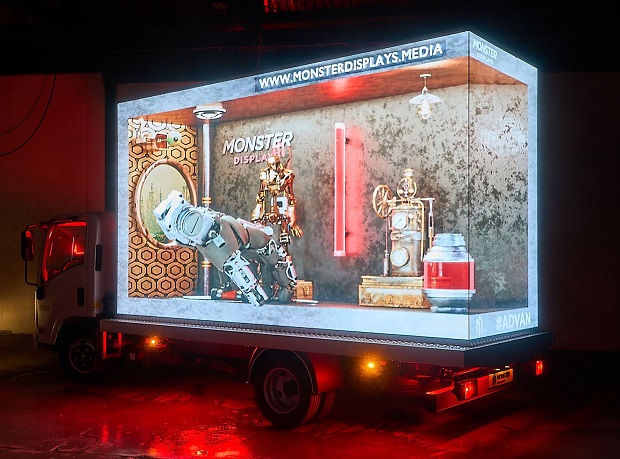

All-in-one Digital mobile truck advertising LED display, make the most of three-sided creative and grab attention from all angles, targeting vehicle traffic and high-footfall areas.
Product features:

Battery and generator hybrid powertrain.

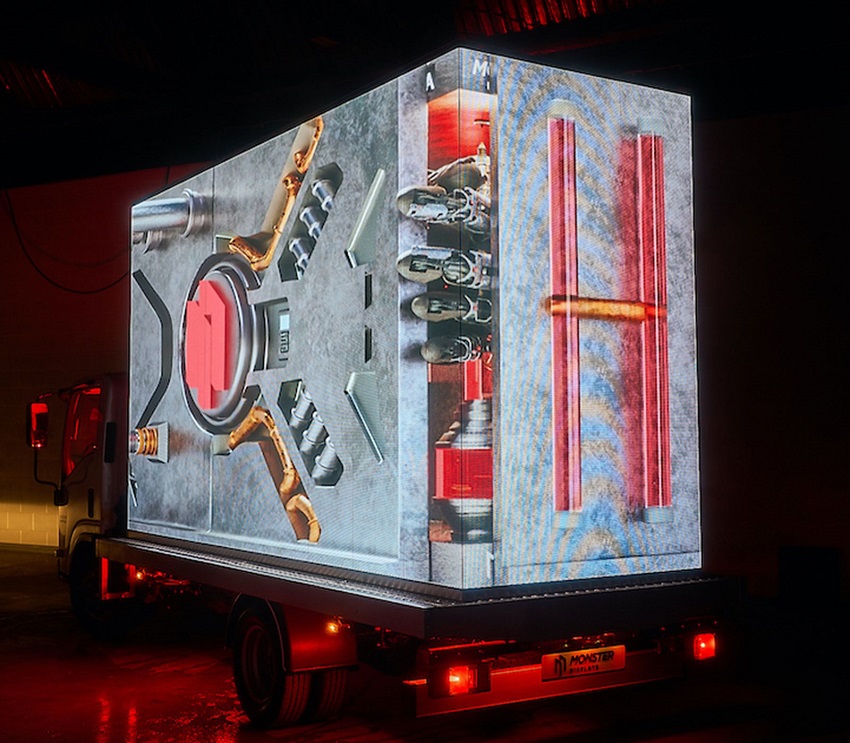

3D anamorphic, dynamic & LED cube experiences.

1 side, 2 sides and 3 sides are available.

180° Edge-to-edge display.

342g CO2 per km Offset with ecological.

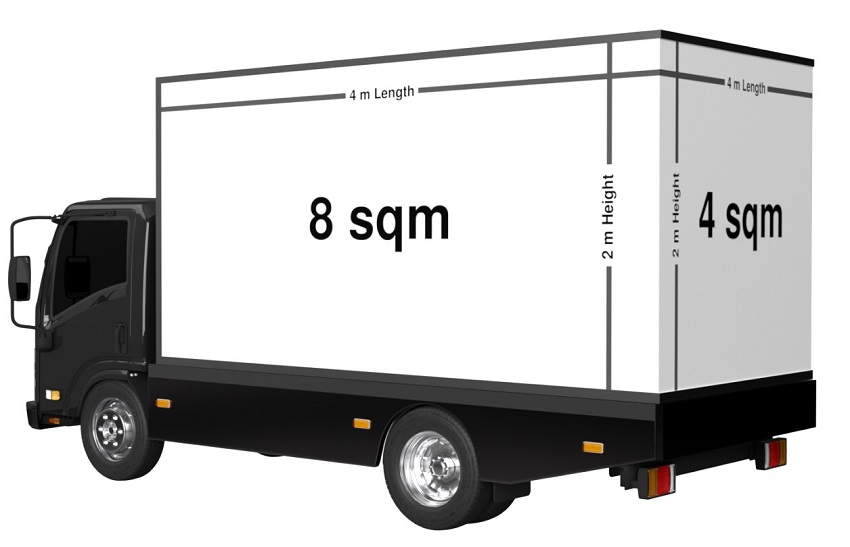

Fully Customizable Design

We can customized the screen size according to truck model.

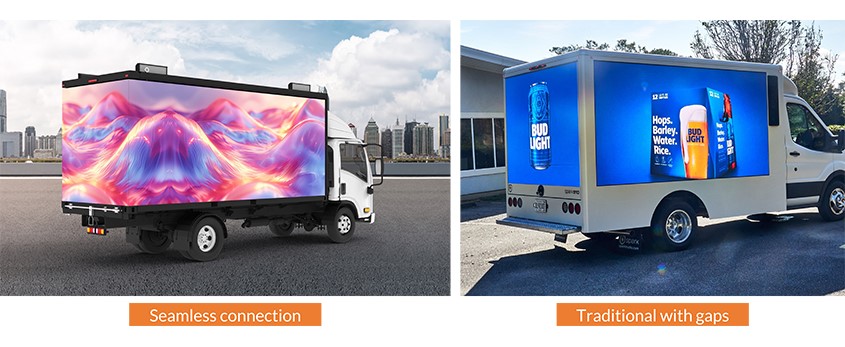

Seamless & Smooth Performance

Customized seamless connection, will deliver smooth brand advertisement than traditional led truck, support 3D anamorphic, dynamic and LED cube experience.

Edge to Edge Display With Proven HD Visuals

3840Hz high refresh rate with pixel pitch for P2.6 P2.9, P3.9 and P4.8, feature clear visibility with even more reliability.

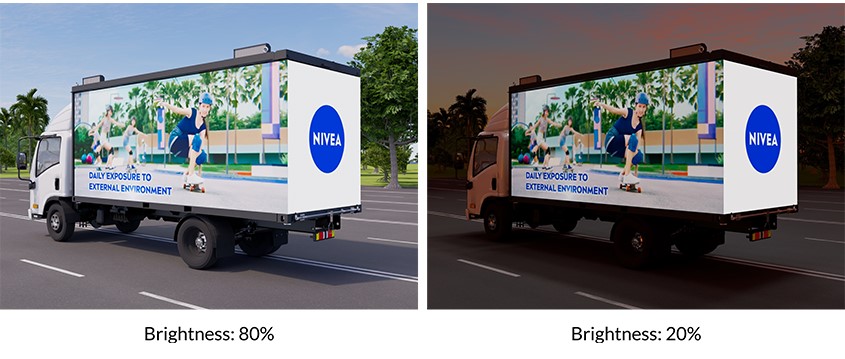

Intelligent Brightness Adjustment

The brightness are ≥5500 nits, inbuilt with light sensor, the brightness can be adjustable automatically, so they can be clearly seen in the sunlight or night, protect the eyes of viewers from hurt, also reach energy- saving.

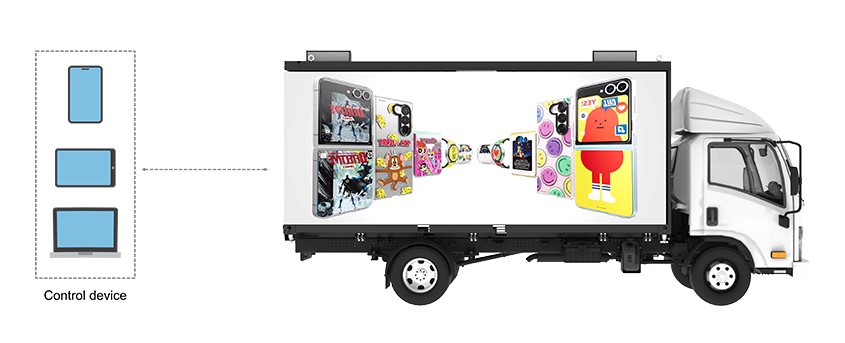

Simple Operation

Our digital advertising mobile LED truck support remote control by PC, Phone and tablet.

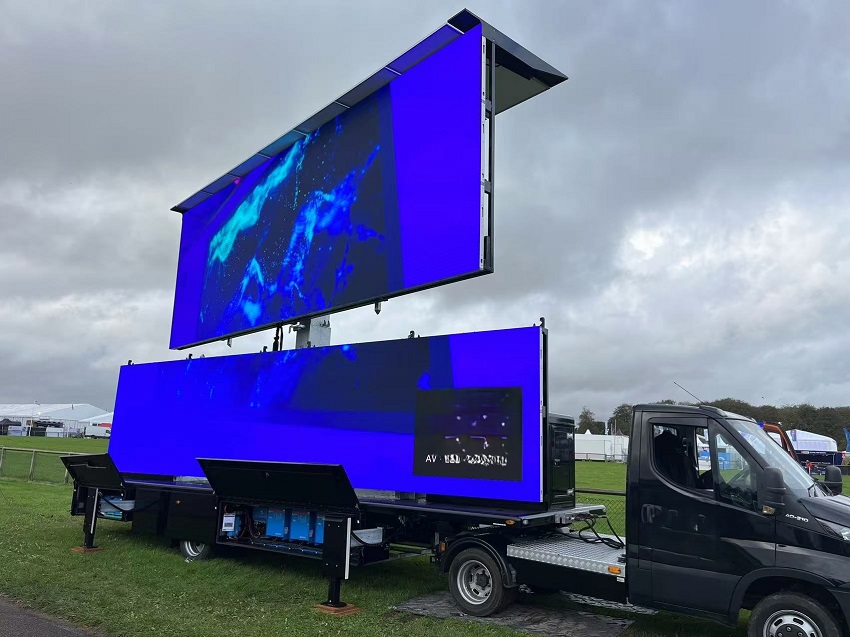

Support Battery Powered

Thanks to the energy saving technology, our digital advertising truck supports 4200 nits brightness only with 310watts/sq.m maximum power consumption. We can support the battery to power the LED Display.

Video & Specification

To ensure that you find the correct solution, please download the specification

Digital Mobile Advertising LED Display (ED Series)

ITEMP2.6P2.9P3.9P4.8
Pixel Pitch2.604mm2.976mm3.906mm4.807mm
LED Lamp ModelSMD1415SMD1415SMD1921SMD1921
Brightness(nits)4500-5500nits4500-5500nits4500-5500nits4500-5500nits
Cabinet Size (W*H)500x500mm500x500mm500x500mm500x500mm
Cabinet Weight (kg/cabinet)8.8kg8.8kg8.8kg8.8kg
Cabinet Resolution (W*H)192x192168x168128x128104x104
Density of Pixels (pixels/m2)147,456 pixels112,896 pixels65,536 pixels43,264 pixels
Cabinet MaterialDie-casting Aluminum
Protection LevelIP65
Viewing Angle (degree)140/140
Operating Environment-20~+65℃ 10%-90% RH
Refresh Rate3840Hz
Gray Scale14 bit
Signal InputDVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage100-240V AC 50~60Hz
Service Life100000Hours
Maximum Power (W/m2)800W/㎡800W/㎡800W/㎡800W/㎡
Average Power (W/m2)280W/㎡280W/㎡280W/㎡280W/㎡
Maintenance WayFront & Rear
