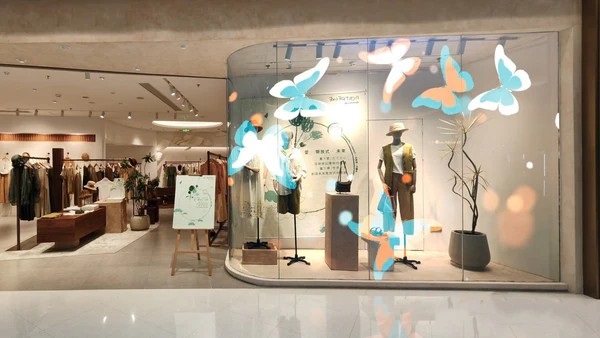

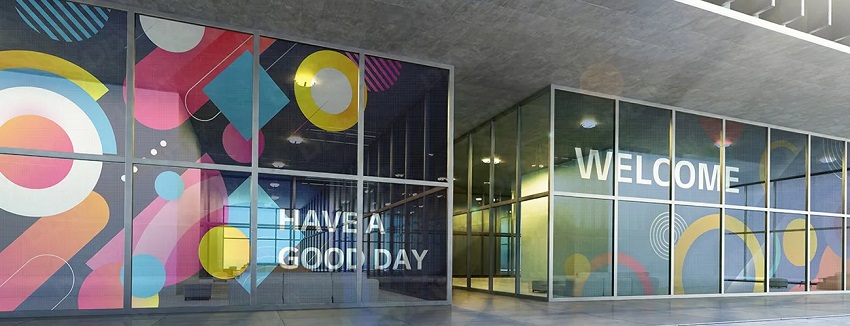

Transparent: without a visible frame and bars in the middle of the screen,it provides high visual transparency at 90% when glued onto a qlass wall.

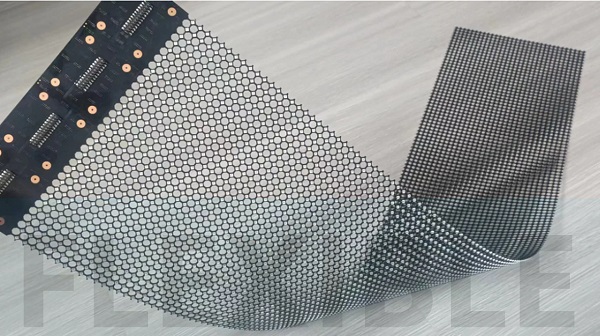

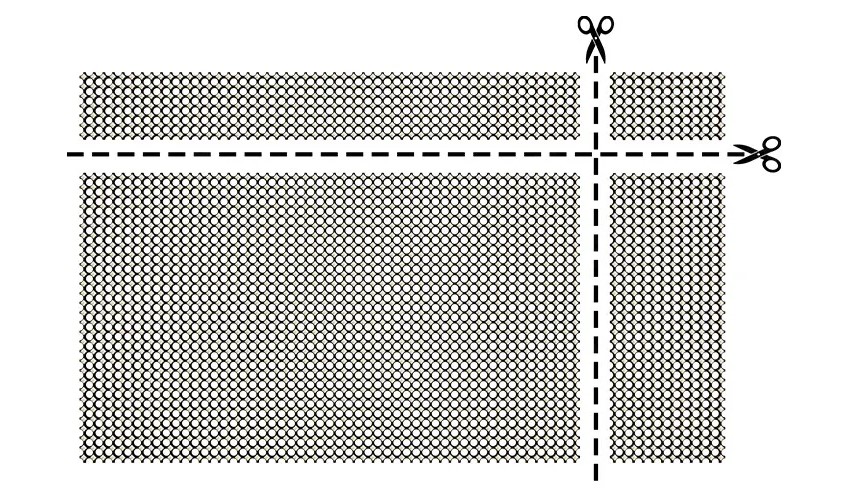

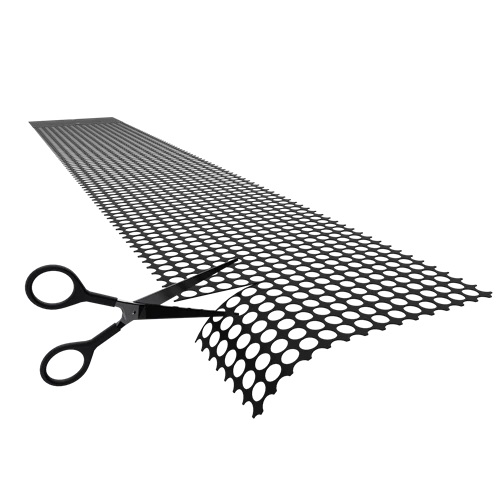

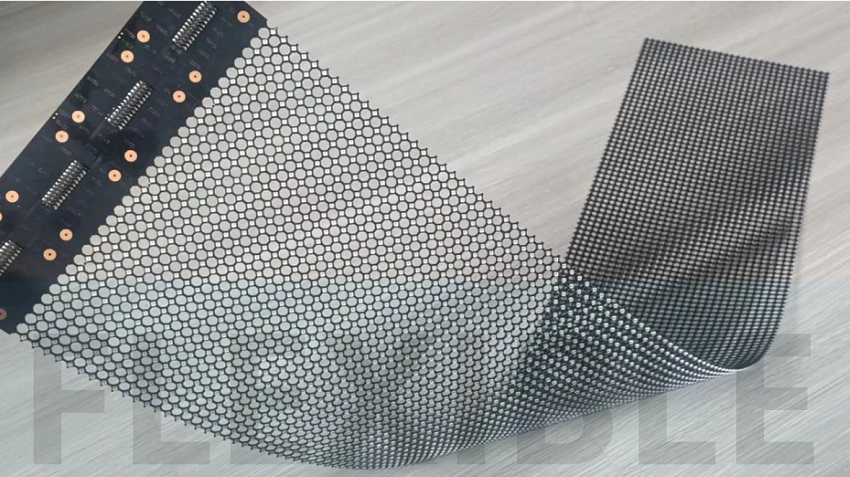

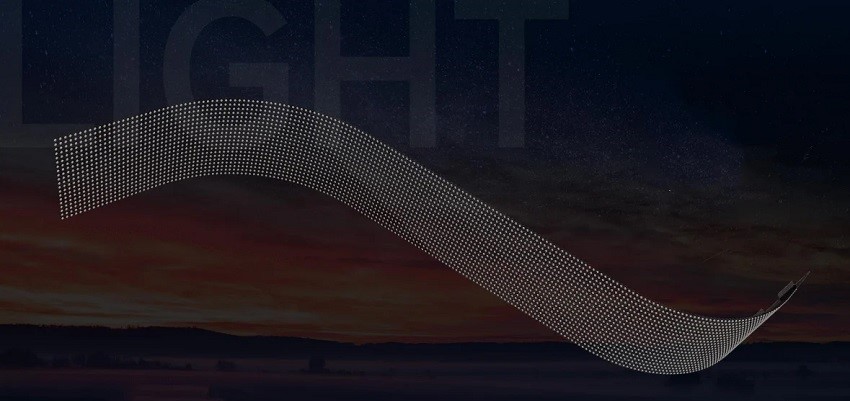

Flexible: standard modules can be bent, cut, and used flexibly. The best partner for curved glass and special-shaped screens.
Light: professional aesthetic design thin and beautiful. Display body products.The weight is only 6kg/square metre.

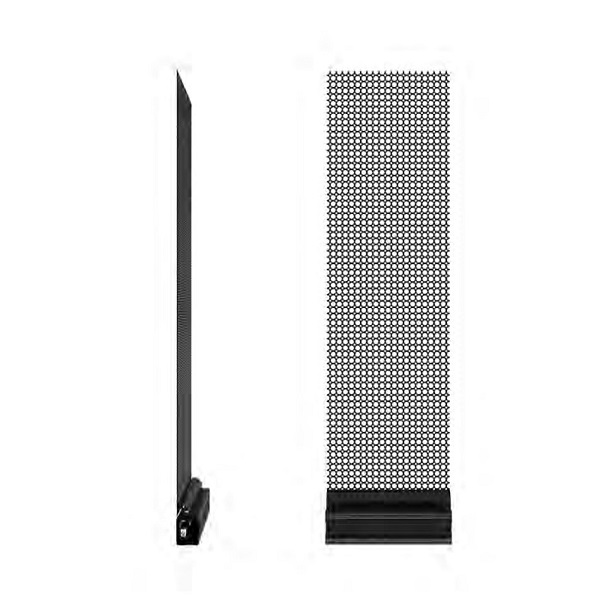

Thin: screen thickness is less than 2mm, which can be seamless surface mount. Mounted on transparent glass.
ITEM | P2.5/2.5 | P3.9/3.9 | P6.25/6.25 | P10/10 |
Pixel Pitch | Horizontal 2.5mm Vertical 2.5mm | Horizontal 3.9mm Vertical 3.9mm | Horizontal 6.25mm Vertical 6.25mm | Horizontal 10mm Vertical 10mm |
LED Lamp Model | Light Board & Driving Board Integrated | |||
Brightness (nits) | 1000-5000nits | 1000-5000nits | 1000-5000nits | 1000-5000nits |
Cabinet Size (W*H) | 1500x250mm 1000x250mm | |||
Cabinet Weight (kg/m2) | 6kg | 6kg | 6kg | 6kg |
Cabinet Resolution (W*H) | 600/400x100 | 384/256x64 | 240/160x40 | 150/100x25 |
Density of Pixels (pixels/m2) | 160,000 pixels | 65,536 pixels | 25,600 pixels | 10,000 pixels |
Cabinet Material | / | |||
Protection Level | IP30/IP30 | |||
Viewing Angle (degree) | 140/140 | |||
Operating Environment | -20~+50℃ 10%-90% RH | |||
Refresh Rate | 3840Hz | |||
Gray Scale | 14 bit | |||
Signal Input | DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc | |||
Operating Voltage | 100-240V AC 50~60Hz | |||
Service Life | 100000Hours | |||
Maximum Power (W/m2) | 800W/㎡ | 800W/㎡ | 800W/㎡ | 780W/㎡ |
Average Power (W/m2) | 350W/㎡ | 220W/㎡ | 220W/㎡ | 220W/㎡ |
Maintenance Way | Front&Rear |
