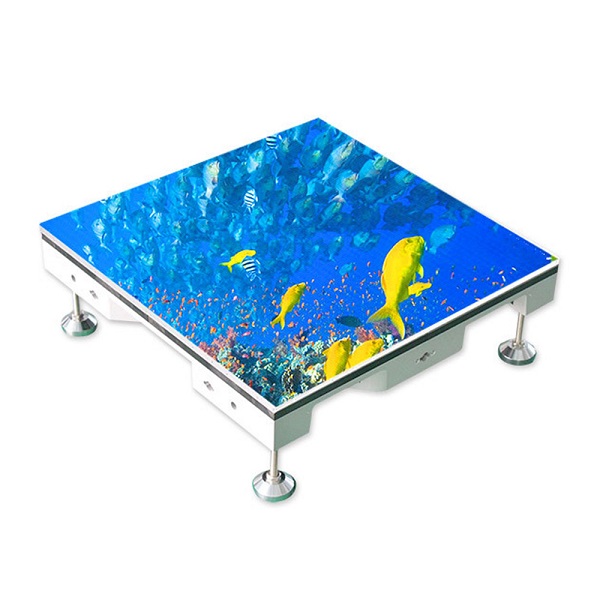

Interactive LED Dance Floor (DF Series)

DF Series:

Dance floor LED screen is a kind of floor led display, which is installed on the ground or special venues. It is usually for all kinds of events, such as stages, night clubs, T- show, weddings, restaurants, exhibitions, trade shows, shopping malls and etc.

Product features:

No delay in interaction effects.

Easy to repair and highly stable.

Adjustable height, super load-bearing performance.

Indoor and outdoor use.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

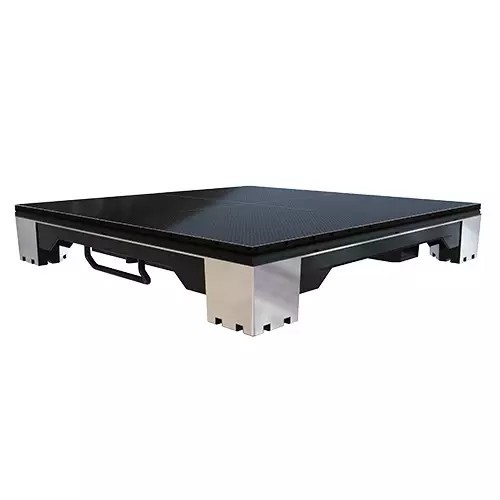

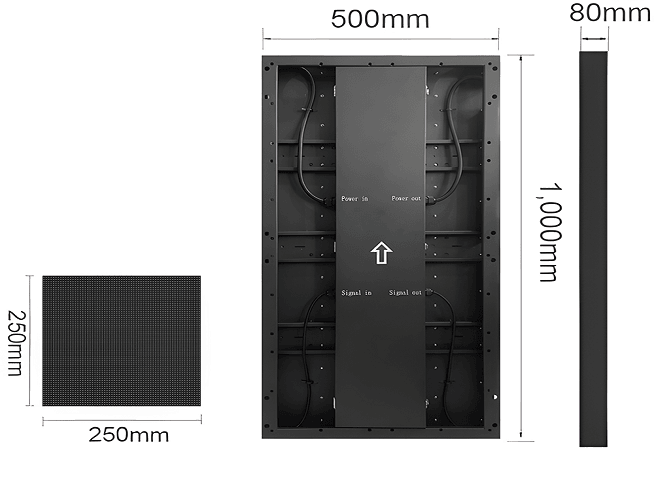

Slim and Lightweight Design

The iron cabinet only weights 23kgs which is lighter than conventional cabinets in the market. Thickness 80mm, lighter cabinets provide more convenience for installation and maintenance. 0.5m by 1m panel size can be easily assembled into big screen of different dimensions.

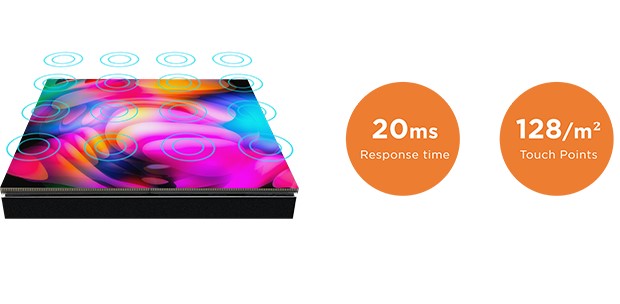

Real-time Interactive with Multi-point Touch

Built-in interactive system and unlimited by interaction points; Super sensitive and responsive, only 0.02s delay in interactive effect, delivering strong visual impact, providing audience a truly amazing and unforgettable experience and greatly improving their engagement.

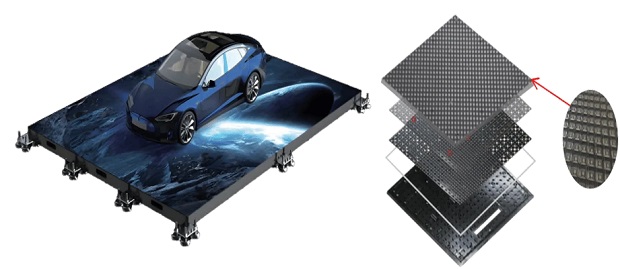

Super Load-bearing Performance

Featured with the reinforcement for whole back to distribute the force on the surface, working with galvanized floor support, its loading capacity is over 3T/sqm, can support walking and jumping crowds which makes it an ideal solution for stage shows, museums, venues, etc.

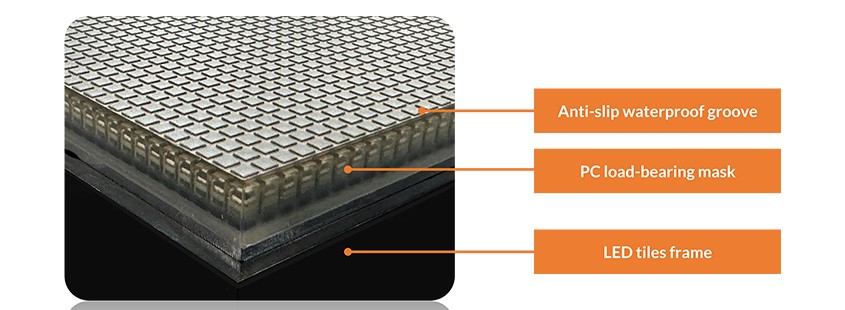

Anti-slip

A+ grade imported polymer PC raw material mask with customized anti-slip design, adapting to different environments.

High Protection

The panel is completely sealed by mask and shell, also treated with waterproof rubber rings and three-proof glue even for each screw hole to ensure moisture-proof, waterproof ,so it can rated as IP54 protection against dust and water.

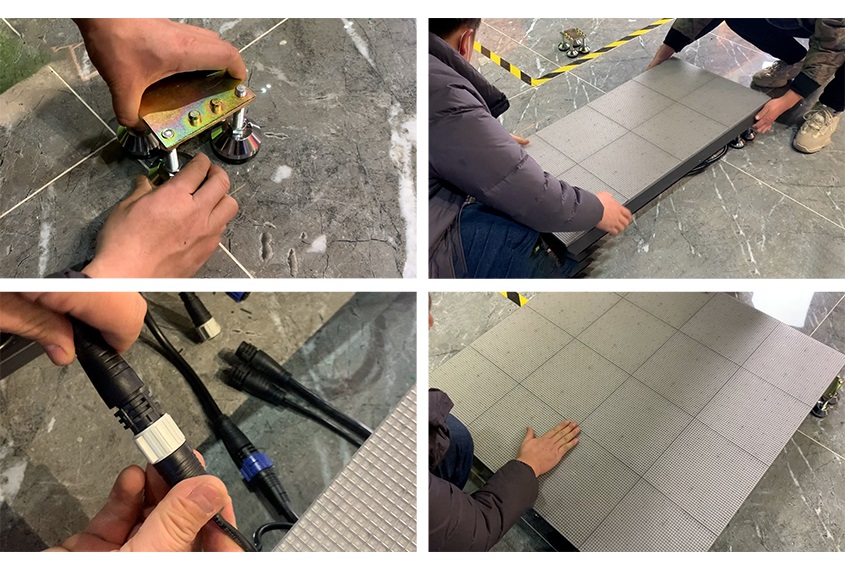

Quick Installation

Independent cabinet foot design offers a fast horizontal positioning and quick assembly.

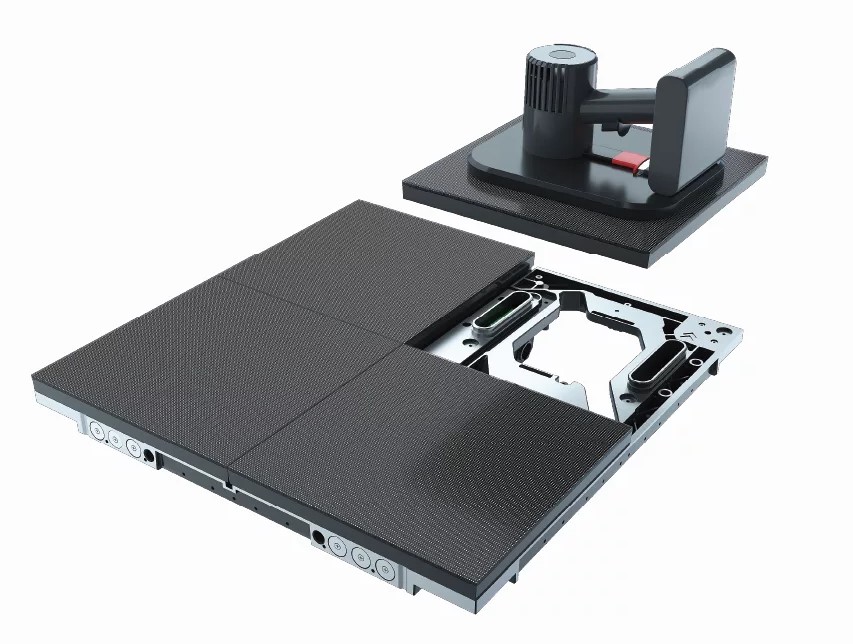

Easy Maintenance

Module adopts magnetically fixed design, which canrealize module replacement in only 3 seconds, greatly decreasing service fime and improving work efficiency.

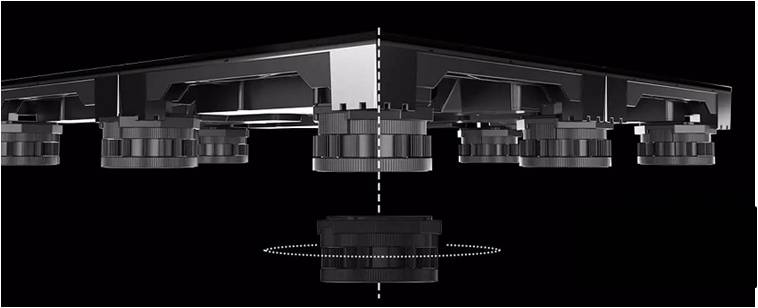

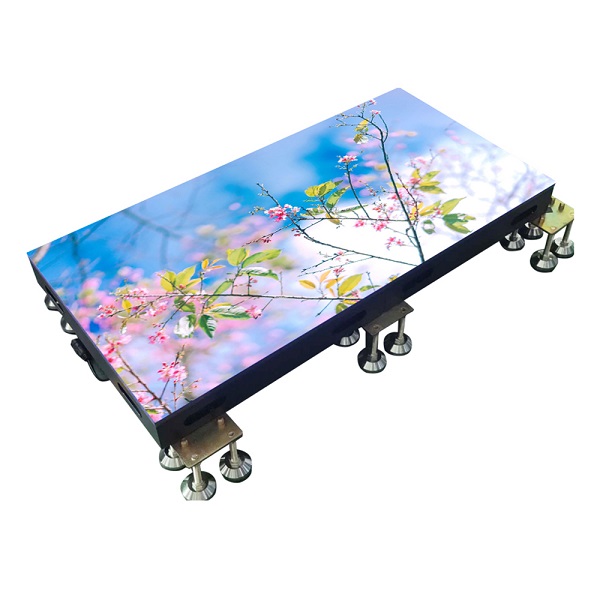

Adjustable in Height

The customized adjustable foot enables the height to be adjusted, more flexible.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

LED Dance Floor Display-DF Series

ITEM	P2.5	P2.6	P2.9	P3.9
Pixel Pitch	2.5mm	2.6mm	2.9mm	3.9mm
LED Lamp Model	SMD1415	SMD1415	SMD1415	SMD1921
Brightness(nits)	800-3000nits	800-3000nits	800-3000nits	800-3000nits
Cabinet Size (W*H)	500x1000mm	500x1000mm	500x1000mm	500x1000mm
Cabinet Weight (kg/cabinet)	23kg	23kg	23kg	23kg
Cabinet Resolution (W*H)	200x400	192x384	168x336	128x256
Density of Pixels (pixels/m2)	160,000 pixels	147,456 pixels	112,896 pixels	65,536 pixels
Cabinet Material	Iron (Die-casting Aluminum optional)
Protection Level	IP54/IP45
Viewing Angle (degree)	160/160
Operating Environment	-10~+50℃ 10%-90% RH
Refresh Rate	1920-3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	780W/㎡	800W/㎡	800W/㎡	800W/㎡
Average Power (W/m2)	260W/㎡	220W/㎡	220W/㎡	220W/㎡
Maintenance Way	Front
