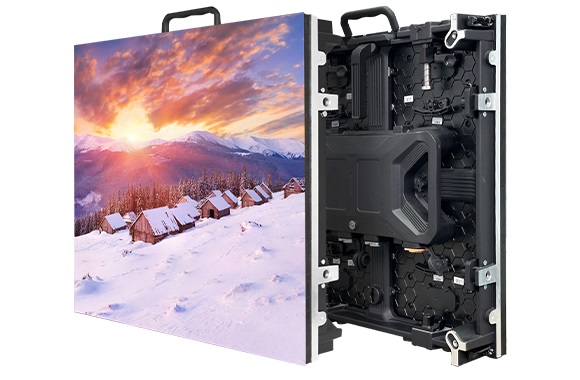

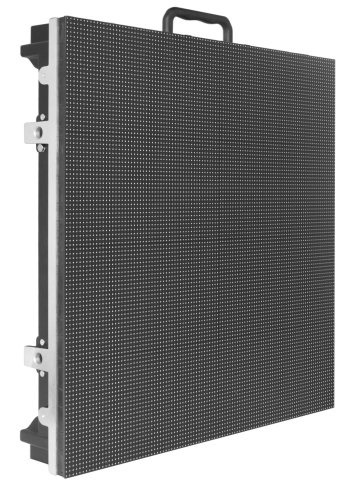

COB Outdoor Fine Pitch Events LED Screen (OC Series)

COB Outdoor Fine Pitch Events LED Screen (OC Series)

OC Series:

Die-casting Aluminum module design, Pitch P1.5, P1.9 COB Outdoor Events LED WALL

Product features:

Full flip-chip COB packaging technology, high protection.

Die-casting aluminum LED module design.

Independent power supply design.

Strong magnet design, one person Installation.

Front & rear access.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

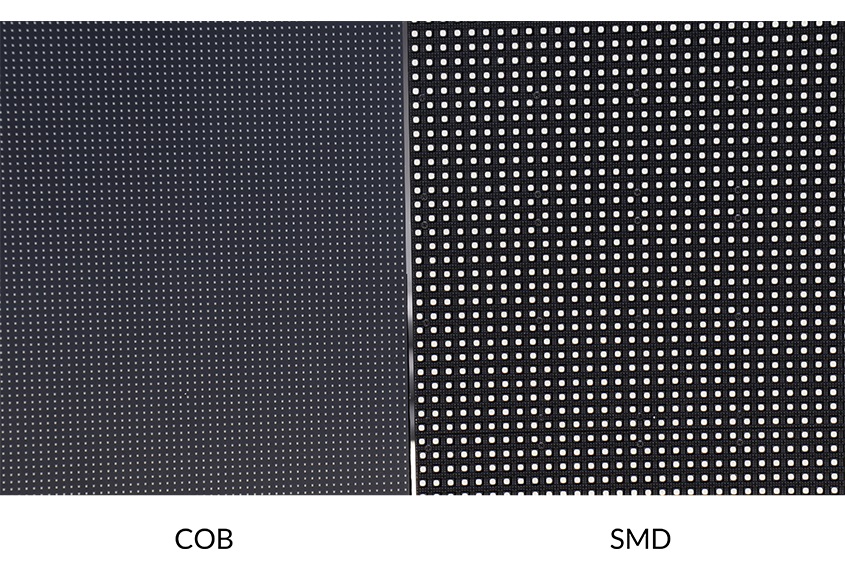

COB Packaging Technology, Superior Pixel Pitch

Breaking through the physical limit of the small pixel pitch in SMD package and completes the realization of a smaller pitch.

Full Flip-chip COB Packaging Technology, High Protection

The full flip-chip COB packaging technology has robust stability and reliability while protecting against dust, static electricity, and impacts. Optional common cathode design, low heat generation, low-temperature rise, low power consumption, extended lifespan.

Die-casting Aluminum LED Module Design

High temperature resistance, not easy to deform and good heat dissipation with longer lifespan compared with plastic module.

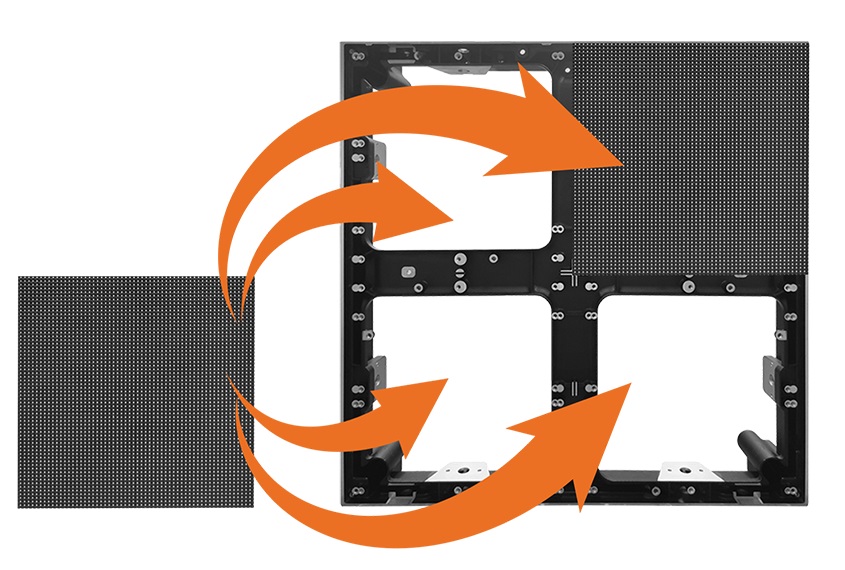

Intelligent Module Design

LED Module replacement freely up & down ,left & right, easy operation and maintenance

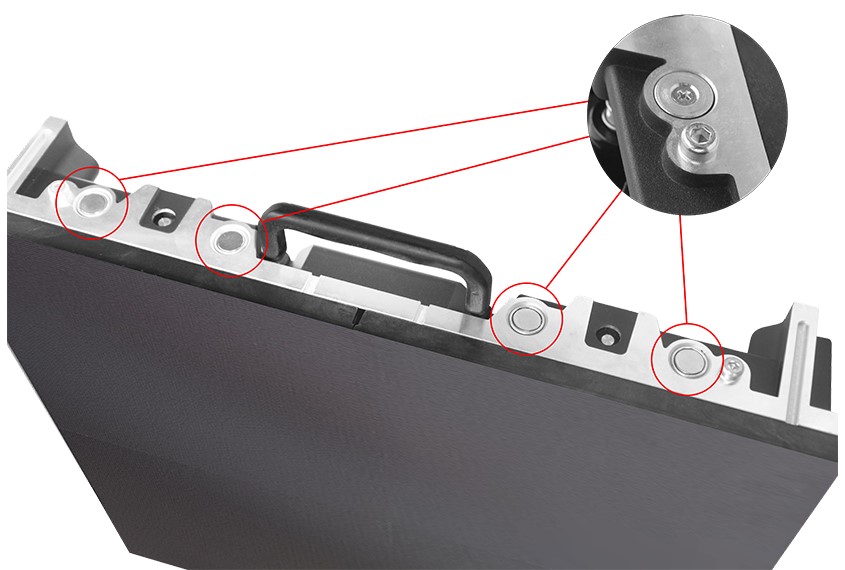

Strong Magnet Design, One Person Installation

Strong magnet for automatic pull-in when doing installation, easy for one person installation.

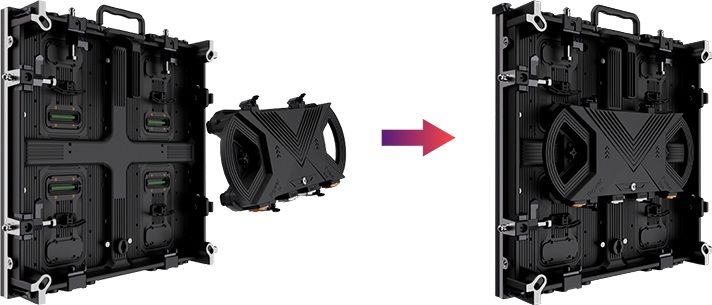

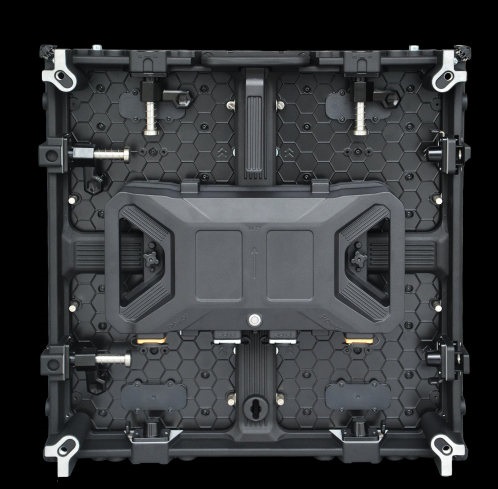

Independent Power Supply Design

Pluggable power box without cable connection, quick operation when doing maintenance, tool free; Unique design for the power supply share of 500500mm with 5001000mm panels.

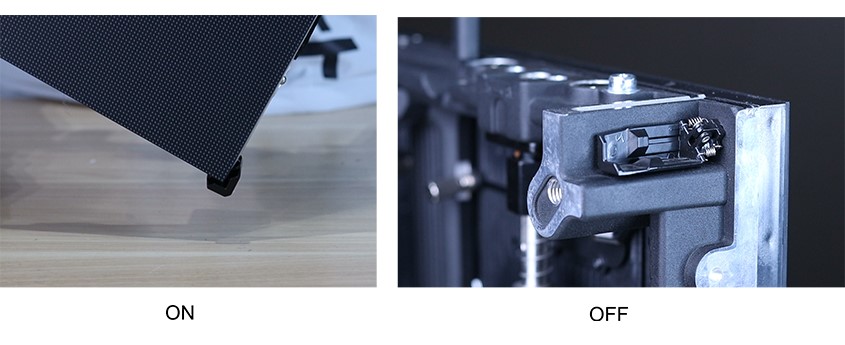

Corner Protector Design

Protecting all the pixels damaged from falling-down during transportation & installation.

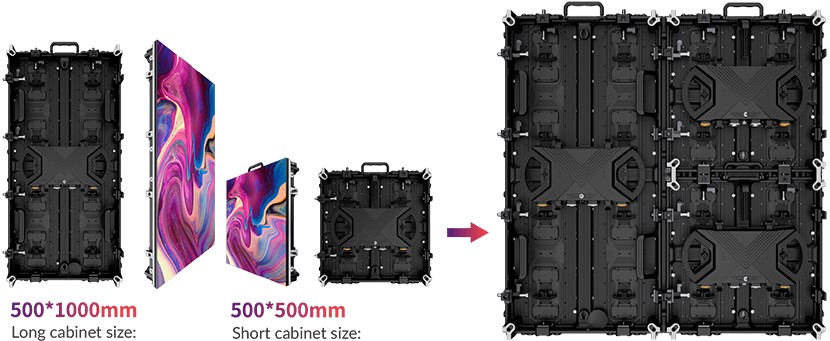

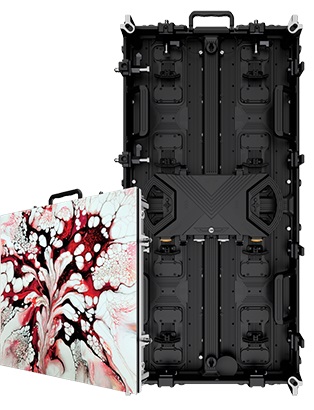

Two Cabinets, Any Splicing

The OC series is available in both long and short cabinet sizes. The two cabinets can not only be used individually but can also be combined, providing the flexibility to choose different cabinets for fitting according to the needs of the scenario.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Outdoor COB LED Display-OC Series

ITEM	P1.9i	P2.6i	P1.5 outdoor	P1.9 outdoor	P2.6 outdoor	P3.9 outdoor
Pixel Pitch	1.953mm	2.604mm	1.5625mm	1.984mm	2.604mm	3.906mm
LED Lamp Model	SMD	SMD	COB	COB	SMD	SMD

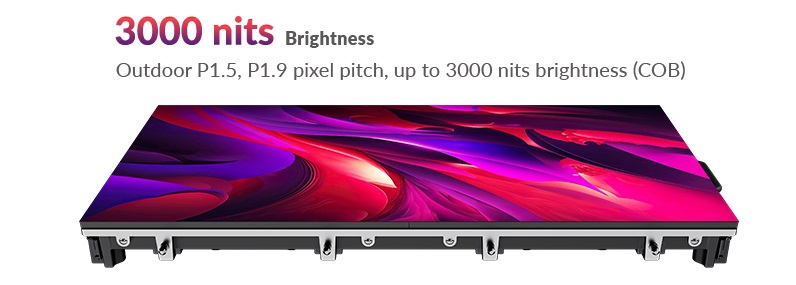

Brightness (nits)	600-800nits	600-800nits	3000nits	3000nits	4500-5500nits	4500-5000nits
Cabinet Size (W*H)	500x500mm / 500x1000mm		500x500mm	500x500mm	500x500mm / 500x1000mm
Cabinet Weight (kg/cabinet)	8.5/14	8.5/14	9.5	9.5	8.5/14	8.5/14
Cabinet Resolution (W*H)	256x256	192x192/384	320x320	256x256	192x192/384	128x128/256
Density of Pixels (pixels/m2)	262,144 pixels	147,456 pixels	409,600 pixels	262,144 pixels	147,456 pixels	65,536 pixels
Cabinet Material	Die-Casting Aluminum
Protection Level	IP30/IP30 IP65/IP54
Viewing Angle (degree)	140/140
Operating Environment	-20~+50℃ 10%-90% RH
Refresh Rate	1920/3840Hz
Gray Scale	14-16 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	650W/㎡	650W/㎡	630W/㎡	550W/㎡	800W/㎡	800W/㎡
Average Power (W/m2)	210W/㎡	210W/㎡	210W/㎡	185W/㎡	230W/㎡	230W/㎡
Maintenance Way	Rear/Front
